Q25LT-BL 090479 Y7-90479 EATON ELECTRIC Illuminated pushbutton actuator, blue, momentary
Q25LT-BL
090479
Y7-90479
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

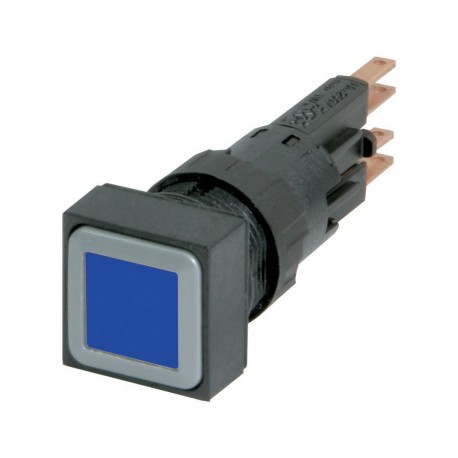

An Eaton Moeller Q25LT-BL illuminated pushbutton actuator integrates lighting capabilities into a compact square operator format for specialized machinery panels. Square indicator and control devices help engineers create distinct visual layouts on complex control desks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Blue
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
CSA
UL File No.: E29184
CSA File No.: 46552
CSA-C22.2 No. 14-05
UL
IEC/EN 60947
UL 508
UL Category Control No.: NKCR
IEC/EN 60947-5
CSA Class No.: 3211-03
Features & Functions
General
IP65
NEMA 1
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Momentary
