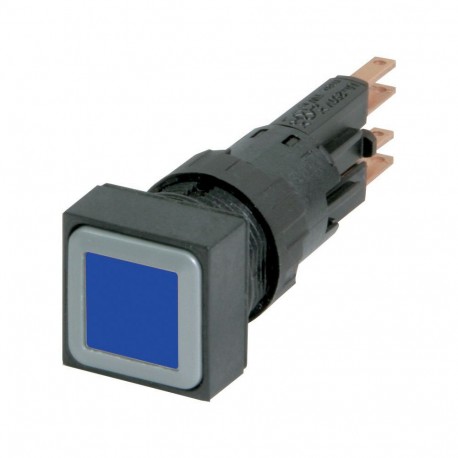

Q18LT-BL 088764 Y7-88764 EATON ELECTRIC Illuminated pushbutton actuator, blue, momentary
Q18LT-BL
088764
Y7-88764
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller Q18LT-BL illuminated pushbutton actuator is a compact control component designed for 16 mm mounting cutouts on electrical control panels, providing visual status feedback alongside manual switching. Illuminated buttons help operators identify control states in low-light industrial areas.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Blue
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
UL Category Control No.: NKCR
CSA Class No.: 3211-03
IEC/EN 60947
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CE
CSA
CSA File No.: 46552
UL 508
UL
Features & Functions
General
IP65
NEMA 1
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Spring-return
