View larger
Images are for illustrative purposes only. Please refer to data sheet for details

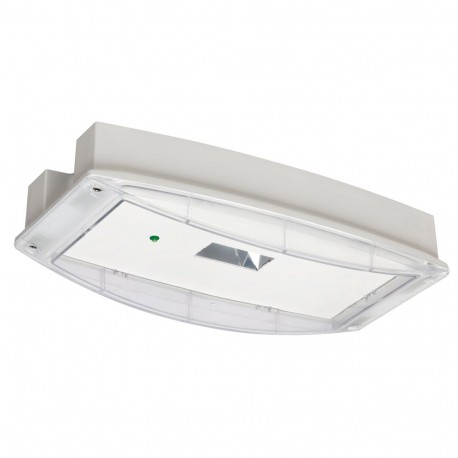

i-P65 Plus H 1H, PC IP65PHP1H EATON ELECTRIC i-P65 Plus H 1H, PC
i-P65 Plus H 1H, PC
iP65PHP1H
EATON - MOELLER
1 Pcs.
i-P65 Plus H 1H, PC
Automation > Emergency luminaire
Self contained
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Ceiling surface mounting |
| Suitable for labelling type (EF001277) | Other |
| With pictogram (EF011099) | No |
| Monitoring equipment (EF008091) | None |
| With remote switch connection (EF007947) | Yes |
| Power supply system (EF000233) | Peripheral (individual battery) |
| Battery technology (EF004351) | NiCd |
| Lamp type (EF002423) | LED non-replaceable |
| With light source (EF005905) | Yes |
| Lamp holder (EF000048) | None |
| Number of lighting heads (EF004258) | 1 |
| Housing material (EF001596) | Plastic |
| Housing colour (EF000136) | Grey |
| Material cover (EF004284) | Plastic transparent |
| Voltage type (EF000187) | AC |
| Nominal voltage (EF005127) | 220 V |
| Type of control gear (EF000381) | LED driver constant current |
| Light distributor (EF012170) | Focal lens |
| Degree of protection (IP) (EF005474) | IP65 |
| Impact strength (EF004293) | IK08 |
| Protection class according to IEC 61140 (EF000004) | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) | Yes |
| Rated ambient temperature according to IEC 62722-2-1 (EF012090) | 5 °C |
| Max. system power (EF009347) | 2.8 W |
| Rated luminous flux according to IEC 62722-2-1 (EF009349) | 560 lm |
| Colour temperature (EF009346) | 6200 K |
| Power factor (EF025740) | 0.5 |
| Nominal operation time (EF012518) | 1 h |
| Width (EF000008) | 80 mm |
| Height/depth (EF001456) | 168 mm |
| Length (EF001438) | 340 mm |
| Built-in width (EF000846) | 80 mm |
| Built-in height/depth (EF023518) | 168 mm |
| Built-in length (EF004265) | 340 mm |
| Type of wiring (EF011868) | Suitable for through wiring |
| Number of poles (EF001391) | 4 |
| Conductor cross section (EF000085) | 2.5 mm² |
| Connection type (EF000124) | Plug-in connection |
