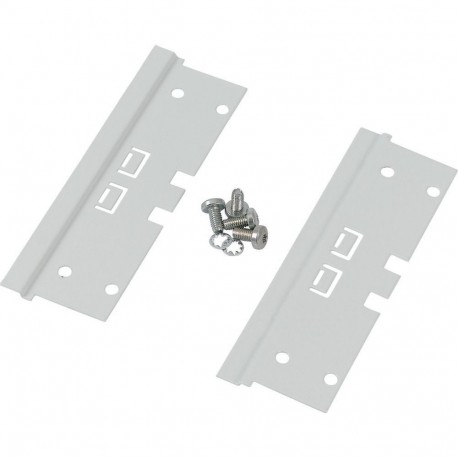

EATON - MOELLER XVTL-BP-W-2/20-TB XVTL-BP-W-2/20-TB 173674 Y7-173674 EATON ELECTRIC Horizontal frame panel for Profi+ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XVTL-BP-W-2/20-TB 173674 Y7-173674 EATON ELECTRIC Horizontal frame panel for Profi+

XVTL-BP-W-2/20-TB

173674

Y7-173674

EATON - MOELLER

1 Pcs.

Horizontal frame panel for Profi+ XVTL-BP-W-2/20-TB Eaton xEffect xVtl Enclosures Switch- & Controlgear Enclosure. Front parts for insulating surround in XVTL with partitioned configuration with a width of 200 mm, height 2000mm Front parts for insulating surround in XVTL with partitioned configuration with a width of 200 mm, height 2000mm

Automation > Cover / infill panel / identification strip (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller horizontal frame panel is a structural enclosure element designed to support modular partitioning and alignment within Profi+ industrial distribution systems. Frame panels provide mechanical rigidity and help organize distinct functional zones inside complex switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Blank plate
  • Width (EF000008): 175 mm
  • Height (EF000040): 20 mm
  • Depth (EF000049): 60 mm
  • Mounting position (EF001664): Scaffold
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEffect xVtl horizontal frame panel
Catalog Number
173674
Model Code
XVTL-BP-W-2/20-TB
EAN
4015081700813
Product Length/Depth
60 mm
Product Height
20 mm
Product Width
175 mm
Product Weight
0.3 kg
Compliances
RoHS conform

Product specifications

RAL-number
7035
Color
Gray
Material
Metal
Mounting position
Scaffold
Model
Blind plate

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
