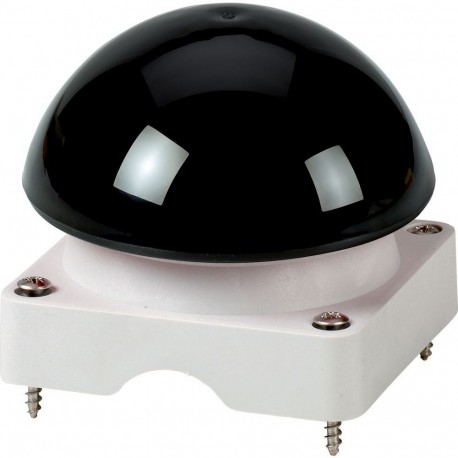

EATON - MOELLER FAK-S FAK-S 095540 Y7-95540 EATON ELECTRIC Hoausing cover grey, button, black View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FAK-S 095540 Y7-95540 EATON ELECTRIC Hoausing cover grey, button, black

FAK-S

095540

Y7-95540

EATON - MOELLER

1 Pcs.

Hoausing cover grey, button, black Push-button foot/hand top grey push-button black Eaton Moeller® series FAK Housing cover grey, button, black FAK enclosure top, easy to mount via four screws. As spare part or for changing the color of an existing FAK´s. When closed, fulfils the status of the degree of protection IP67 and IP69K

Automation > Foot and palm switch enclosure base
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series FAK Accessory Enclosure top
Catalog Number
095540
Model Code
FAK-S
EAN
4015080955405
Product Length/Depth
85 mm
Product Height
85 mm
Product Width
65 mm
Product Weight
0.222 kg
Certifications
CSA File No.: 012528
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL File No.: E29184
UL 508
CSA
CSA-C22.2 No. 94-91
CE
UL
UL Category Control No.: NKCR
CSA Class No.: 3211-03

Features & Functions

Color
Black
Enclosure color
Gray

General

Connection to SmartWire-DT
No
Degree of protection
NEMA 13
IP Other
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C

Actuator

Actuator color
Black
Actuator function
Momentary

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 095540 Low-voltage industrial controls and switchgear (EC002031)
Feature Name Feature Value
Colour (EF000007) Black
Degree of protection (IP) (EF005474) Other
Degree of protection (NEMA) (EF011959) 13
