View larger
Images are for illustrative purposes only. Please refer to data sheet for details

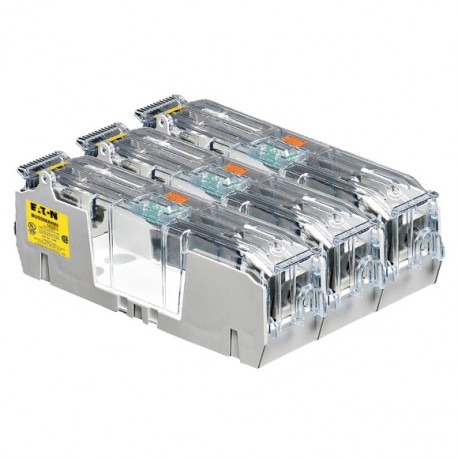

HM60200-3CR EATON ELECTRIC Fuse-holder, low voltage, 60 A, AC 600 V, DC 600 V, UL Class J, 120 x 83 x 125 mm..
HM60200-3CR
HM602003CR
EATON - MOELLER
1 Pcs.
200 amp class H fuse holder 600V - 3 pol
200 amp class H fuse holder 600V - 3 pol - Fuse block, low voltage, 200 A, AC 600 V, 75 x 203 x 207 mm, 3P, UL, CSA
Automation > Low Voltage HRC fuse base
Bussmann Series High speed fuses
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Fuse block, low voltage, 200 A, AC 600 V, 75 x 203 x 207 mm, 3P, UL, CSA
Fuse accessory, Fuse-block, low voltage, 200 A, AC 600 V, UL class H, 75 x 203 x 207 mm, 3P, UL, CSA, UL Recognized, Guide No. IZLT2, File No. E14853, Thermoplastic, Optional accessories IP20 finger-safe cover
Delivery program
Product range
Fuse accessory
Basic function
Fuse-block
Field of application
low voltage
Rated current [I]
200 A
Rated voltage
AC 600 V
Size
75 x 203 x 207 mm
Number of poles
3P
Standard/Approval
UL
CSA
CSA
Material
Thermoplastic
Standards/Regulations
UL Recognized, Guide No. IZLT2, File No. E14853
Optional accessories
IP20 finger-safe cover
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse base (EC000067)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Low-Voltage HRC fuse base ([email protected] [AKE278013])
Construction size
Other
Number of poles
3
Rated current
200 A
Bus-mounting type
No
Swivelling mechanism
No
