View larger

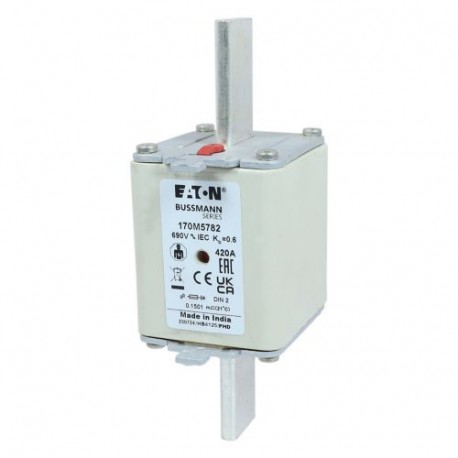

Images are for illustrative purposes only. Please refer to data sheet for details
FUSE 420A 690V gR DIN 2 HSDNH 170M5782 EATON ELECTRIC Fuse-link, high speed, 420 A, AC 690 V, DIN 2, gR, DIN..
FUSE 420A 690V gR DIN 2 HSDNH
170M5782
170M5782
EATON - MOELLER
3 Pcs.
Fuse-link, high speed, 420 A, AC 690 V, DIN 2, gR, DIN, IEC, dual indicator, live gripping lugs
FUSE 420A 690V gR DIN 2 HSDNH
Automation > Low Voltage HRC fuse
Bussmann Series High speed fuses
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series high speed square body fuse
Catalog Number
170M5782
EAN
5027590459129
Product Length/Depth
200 mm
Product Height
79 mm
Product Width
158 mm
Product Weight
674 g
Compliances
CE
RoHS Compliant
EAC
RoHS Compliant
EAC
Certifications
IEC 60269-4
Electrical data
Amperage Rating
420 A
Voltage rating
690 V
Voltage type
AC
Watt losses
43 W
Class
Class aR
Product specification
Fuse size
2
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | Other |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 420 A |
| Rated voltage AC (EF007682) | 690 V |
| Rated switching capacity AC (EF017698) | 200 kA |
| Utilization category according to IEC 60269 (EF002572) | gR (general purpose semiconductor protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | No |
| Power loss at rated current (EF012389) | 43 W |
