View larger
Images are for illustrative purposes only. Please refer to data sheet for details

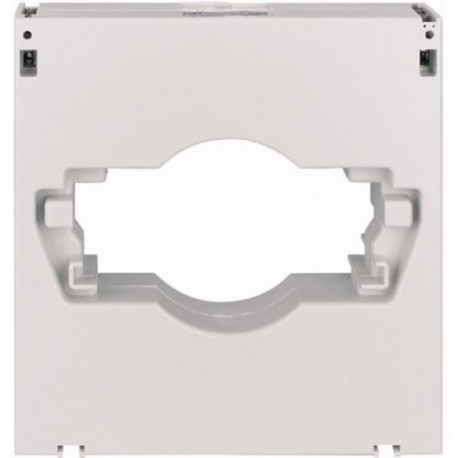

HF8A-2000/1A 741K0021 Y7-135509 EATON ELECTRIC HF8A-2000/1A
HF8A-2000/1A
741K0021
Y7-135509
EATON - MOELLER
1 Pcs.
HF8A-2000/1A
Eaton Distribution parts. Current transformer HF8A, 2000A/1A
Current transformer HF8A, Class 0.5, single phase, 2000A/1A
Automation > Current transformer
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Distribution parts
Catalog Number
741K0021
Model Code
HF8A-2000/1A
EAN
5703498702498
Product Length/Depth
183 mm
Product Height
54 mm
Product Width
185 mm
Product Weight
1.95 kg
Compliances
RoHS conform
Product specifications
Opening width - min
130 mm
Opening height - min
56 mm
Nominal current
2000 A
Number of inputs (primary)
1
Opening diameter
81 mm
Opening height - max
56 mm
Secondary current input
1 A
Secondary rated apparent power
15 VA
Opening width - max
130 mm
Accuracy class (ratio)
3
Model
Through-feed current converter
Mounting method
Snap mounting
Over current limiting factor
FS 10
Secondary connection
Screw connection
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Through-feed current converter |
| Rated primary current (EF007405) | 2000 A |
| Rated secondary current (EF007471) | 1 A |
| Rated secondary apparent power (EF007470) | 15 VA |
| Accuracy class (EF008842) | 3 |
| Overcurrent limiting factor (EF007511) | FS 10 |
| Calibrated (EF008836) | No |
| With contact protection (EF008186) | No |
| Height opening (EF012757) | 56 mm |
| Width opening (EF012758) | 130 mm |
| Opening diameter (EF005153) | 81 mm |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | No |
| Secondary connection (EF021093) | Screw connection |
| Number of primary inputs (EF006947) | 1 |
