View larger
Images are for illustrative purposes only. Please refer to data sheet for details

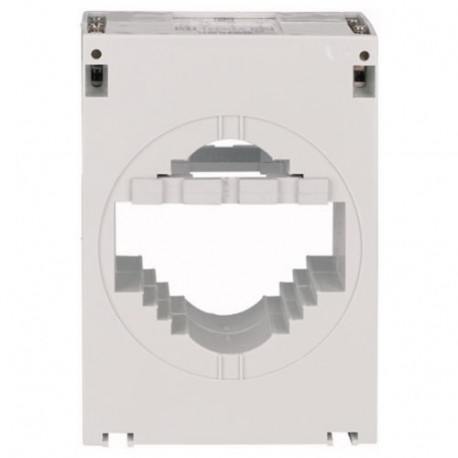

HF7A-2000/5A-CLASS-0.2S 741H0064 Y7-135497 EATON ELECTRIC HF7A-2000/5A-CLASS-0.2S
HF7A-2000/5A-CLASS-0.2S
741H0064
Y7-135497
EATON - MOELLER
1 Pcs.
HF7A-2000/5A-CLASS-0.2S
Eaton Distribution parts. Current transformer HF7A, 2000A/5A, Class 0.2S
Current transformer HF7A, Class 0.2S, single phase, 2000A/5A
Automation > Current transformer
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Distribution parts
Catalog Number
741H0064
Model Code
HF7A-2000/5A-CLASS-0.2S
EAN
5703498702368
Product Length/Depth
146 mm
Product Height
52 mm
Product Width
106 mm
Product Weight
1.21 kg
Compliances
RoHS conform
Product specifications
Opening width - min
80 mm
Opening height - min
60 mm
Nominal current
2000 A
Number of inputs (primary)
1
Opening diameter
65 mm
Opening height - max
60 mm
Secondary current input
5 A
Secondary rated apparent power
10 VA
Opening width - max
80 mm
Accuracy class (ratio)
3
Model
Through-feed current converter
Mounting method
Snap mounting
Over current limiting factor
FS 10
Secondary connection
Screw connection
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Through-feed current converter |
| Rated primary current (EF007405) | 2000 A |
| Rated secondary current (EF007471) | 5 A |
| Rated secondary apparent power (EF007470) | 10 VA |
| Accuracy class (EF008842) | 3 |
| Overcurrent limiting factor (EF007511) | FS 10 |
| Calibrated (EF008836) | No |
| With contact protection (EF008186) | No |
| Height opening (EF012757) | 60 mm |
| Width opening (EF012758) | 80 mm |
| Opening diameter (EF005153) | 65 mm |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | No |
| Secondary connection (EF021093) | Screw connection |
| Number of primary inputs (EF006947) | 1 |
