HF7A-2000/5A 741H0021 Y7-135476 EATON ELECTRIC HF7A-2000/5A
HF7A-2000/5A
741H0021
Y7-135476
EATON - MOELLER
1 Pcs.
Automation > Current transformer
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

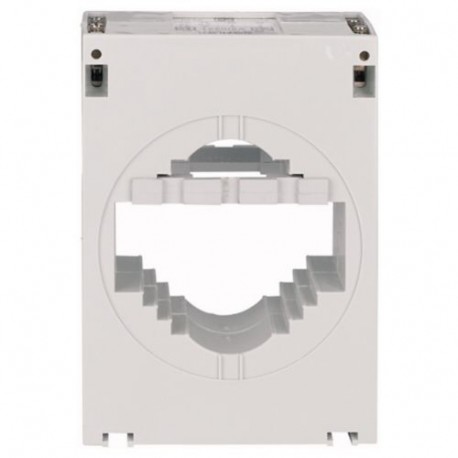

An Eaton Moeller HF7A-2000/5A through-feed current converter is utilized in electrical distribution infrastructure to step down high primary currents to a safe, proportional secondary level for metering and protective relays. Units of this type typically mount around conductors or busbars within industrial switchgear to supply standard measurement devices without breaking the primary circuit. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 2000 A
- Rated secondary current (EF007471): 5 A
- Rated secondary apparent power (EF007470): 30 VA
- Accuracy class (EF008842): 3
- Overcurrent limiting factor (EF007511): FS 5
- Calibrated (EF008836): No
- With contact protection (EF008186): No
- Height opening (EF012757): 60 mm
- Width opening (EF012758): 80 mm
- Opening diameter (EF005153): 65 mm
- Snap mounting (EF007462): Yes
- With copper rail (EF007380): No
- Secondary connection (EF021093): Screw connection
- Number of primary inputs (EF006947): 1
