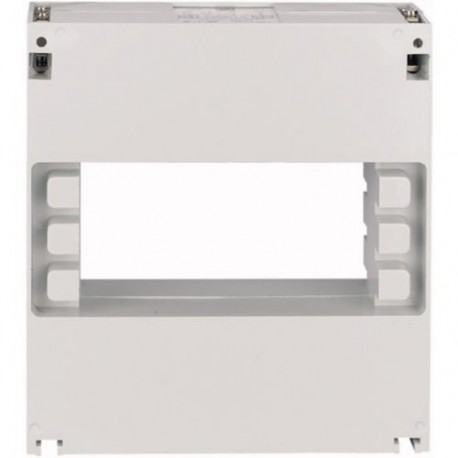

EATON - MOELLER HF6-2000/5A-CLASS-0.2S HF6-2000/5A-CLASS-0.2S 741F0060 Y7-135461 EATON ELECTRIC HF6-2000/5A-CLASS-0.2S View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HF6-2000/5A-CLASS-0.2S 741F0060 Y7-135461 EATON ELECTRIC HF6-2000/5A-CLASS-0.2S

HF6-2000/5A-CLASS-0.2S

741F0060

Y7-135461

EATON - MOELLER

1 Pcs.

HF6-2000/5A-CLASS-0.2S Eaton Distribution parts. Current transformer HF6, 2000A/5A, Class 0.2S Current transformer HF6, Class 0.2S, single phase, 2000A/5A

Automation > Current transformer
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy industrial power distribution, the HF6-2000/5A-CLASS-0.2S 741F0060 Y7-135461 EATON ELECTRIC HF6-2000/5A-CLASS-0.2S functions as a through-feed current converter. These transformers isolate measurement instruments from high primary circuits while converting large currents into proportional, low-level outputs suitable for metering gear and protective relays.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Through-feed current converter
  • Rated primary current (EF007405): 2000 A
  • Rated secondary current (EF007471): 5 A
  • Rated secondary apparent power (EF007470): 10 VA
  • Accuracy class (EF008842): 3
  • Overcurrent limiting factor (EF007511): FS 10
  • Calibrated (EF008836): No
  • With contact protection (EF008186): No
  • Height opening (EF012757): 56 mm
  • Width opening (EF012758): 110 mm
  • Opening diameter (EF005153): 55 mm
  • Snap mounting (EF007462): Yes
  • With copper rail (EF007380): No
  • Secondary connection (EF021093): Screw connection
  • Number of primary inputs (EF006947): 1

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
741F0060
Model Code
HF6-2000/5A-CLASS-0.2S
EAN
5703498701989
Product Length/Depth
149 mm
Product Height
52 mm
Product Width
158 mm
Product Weight
1.96 kg
Compliances
RoHS conform

Product specifications

Opening width - min
110 mm
Opening height - min
56 mm
Nominal current
2000 A
Number of inputs (primary)
1
Opening diameter
55 mm
Opening height - max
56 mm
Secondary current input
5 A
Secondary rated apparent power
10 VA
Opening width - max
110 mm
Accuracy class (ratio)
3
Model
Through-feed current converter
Mounting method
Snap mounting
Over current limiting factor
FS 10
Secondary connection
Screw connection

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
