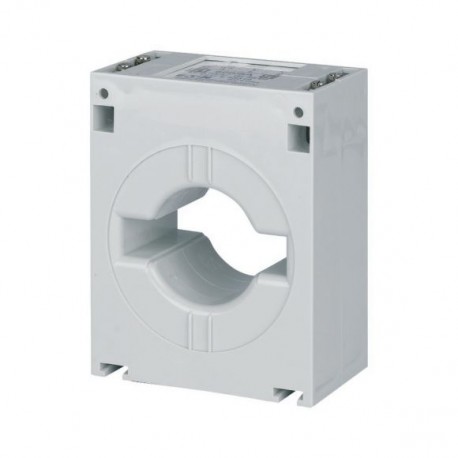

EATON - MOELLER HF5-400/5A HF5-400/5A 741E0021 Y7-135414 EATON ELECTRIC HF5 Current Transformer, 400A/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HF5-400/5A 741E0021 Y7-135414 EATON ELECTRIC HF5 Current Transformer, 400A/5A

HF5-400/5A

741E0021

Y7-135414

EATON - MOELLER

1 Pcs.

HF5 Current Transformer, 400A/5A Current transformer HF5, 400A/5A Current transformer HF5, Class 0.5, single phase, 400A/5A

Automation > Current transformer
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Current transformer HF5, 400A/5A
Current transformer HF5, Class 0.5, single phase, 400A/5A

General specifications
Product name
Eaton Distribution parts
Part no.
HF5-400/5A
EAN
5703498701521
Product Length/Depth
83 millimetre
Product height
52 millimetre
Product width
105 millimetre
Product weight
0.641 kilogram
Compliances
RoHS conform
Product Tradename
None
Product Type
Distribution parts
Product Sub Type
None
Public Consumption
Yes
Product Family Description
ES-PMCC-PDC-Eaton Distribution parts
Globally Marketable
Yes
Product Specification Details
Accuracy class (ratio)
3
Model
Through-feed current converter
Nominal current
400 A
Number of inputs (primary)
1
Opening diameter
39 mm
Opening height - max
13 mm
Opening height - min
13 mm
Opening width - max
61 mm
Opening width - min
61 mm
Over current limiting factor
FS 5
Secondary connection
Screw connection
Secondary current input
5 A
Secondary rated apparent power
10 V·A

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Current transformer (EC002048)
Electric engineering, automation, process control engineering / Signal processing / Transformer / Current transformer (ecl@ss13-27-21-09-02 [AAB626019])
Model
Through-feed current converter
Rated primary current
400 A
Rated secondary current
5 A
Rated secondary apparent power
10 VA
Power consumption
W
Accuracy class
3
Overcurrent limiting factor
FS 5
Calibrated
No
With shock protection
No
Height opening
13 - 13 mm
Width opening
61 - 61 mm
Opening diameter
39 mm
Snap mounting
Yes
With copper rail
No
Secondary connection
Screw connection
Number of primary inputs
1

ETIM for 741E0021 Low-voltage industrial controls and switchgear (EC002048)
Feature Name Feature Value
Model (EF000010) Through-feed current converter
Rated primary current (EF007405) 400 A
Rated secondary current (EF007471) 5 A
Rated secondary apparent power (EF007470) 10 VA
Accuracy class (EF008842) 3
Overcurrent limiting factor (EF007511) FS 5
Calibrated (EF008836) No
With contact protection (EF008186) No
Height opening (EF012757) 13 mm
Width opening (EF012758) 61 mm
Opening diameter (EF005153) 39 mm
Snap mounting (EF007462) Yes
With copper rail (EF007380) No
Secondary connection (EF021093) Screw connection
Number of primary inputs (EF006947) 1
