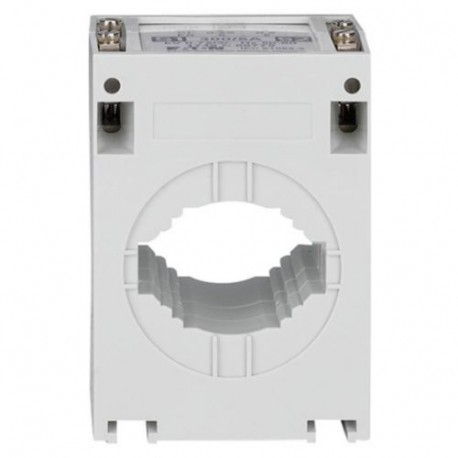

HF4B-75/5A 741C2059 Y7-135384 EATON ELECTRIC HF4B Current Transformer, 75A/5A
HF4B-75/5A
741C2059
Y7-135384
EATON - MOELLER
1 Pcs.
Automation > Current transformer
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
HF4B-75/5A from Eaton Moeller is a through-feed current converter engineered to safely step down high electrical currents for measurement and protection devices in industrial power distribution panels. Current transformers of this type enable meters and relays to monitor primary circuits accurately without direct exposure to dangerous high-amperage lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 75 A
- Rated secondary current (EF007471): 5 A
- Rated secondary apparent power (EF007470): 1 VA
- Accuracy class (EF008842): 3
- Overcurrent limiting factor (EF007511): FS 5
- Calibrated (EF008836): No
- With contact protection (EF008186): No
- Height opening (EF012757): 25 mm
- Width opening (EF012758): 40 mm
- Opening diameter (EF005153): 28 mm
- Snap mounting (EF007462): Yes
- With copper rail (EF007380): No
- Secondary connection (EF021093): Screw connection
- Number of primary inputs (EF006947): 1
