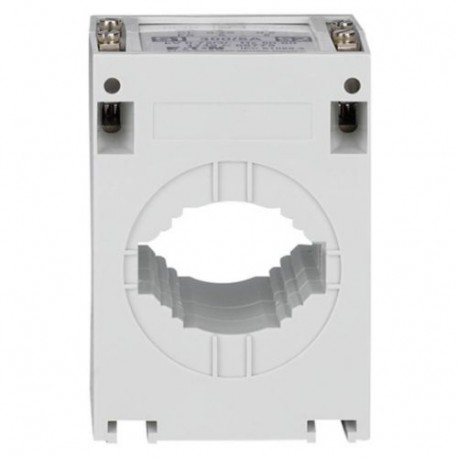

EATON - MOELLER HF4B-400/1A HF4B-400/1A 741C2073 Y7-135398 EATON ELECTRIC HF4B Current Transformer, 400A/1A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HF4B-400/1A 741C2073 Y7-135398 EATON ELECTRIC HF4B Current Transformer, 400A/1A

HF4B-400/1A

741C2073

Y7-135398

EATON - MOELLER

1 Pcs.

HF4B Current Transformer, 400A/1A HF4B-400/1A Eaton Distribution parts. Current transformer HF4B, 400A/1A Current transformer HF4B, Class 0.5, single phase, 400A/1A

Automation > Current transformer
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller HF4B-400/1A is a through-feed current converter utilized to adapt high-amperage lines for use with standard electrical measurement and control devices. It isolates low-voltage instrumentation from high power circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Through-feed current converter
  • Rated primary current (EF007405): 400 A
  • Rated secondary current (EF007471): 1 A
  • Rated secondary apparent power (EF007470): 7.5 VA
  • Accuracy class (EF008842): 3
  • Overcurrent limiting factor (EF007511): FS 5
  • Calibrated (EF008836): No
  • With contact protection (EF008186): No
  • Height opening (EF012757): 25 mm
  • Width opening (EF012758): 40 mm
  • Opening diameter (EF005153): 28 mm
  • Snap mounting (EF007462): Yes
  • With copper rail (EF007380): No
  • Secondary connection (EF021093): Screw connection
  • Number of primary inputs (EF006947): 1

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
741C2073
Model Code
HF4B-400/1A
EAN
5703498701347
Product Length/Depth
61 mm
Product Height
52 mm
Product Width
85.5 mm
Product Weight
0.405 kg
Compliances
RoHS conform

Product specifications

Opening width - min
40 mm
Opening height - min
25 mm
Nominal current
400 A
Number of inputs (primary)
1
Opening diameter
28 mm
Opening height - max
25 mm
Secondary current input
1 A
Secondary rated apparent power
7.5 VA
Opening width - max
40 mm
Accuracy class (ratio)
3
Model
Through-feed current converter
Mounting method
Snap mounting
Over current limiting factor
FS 5
Secondary connection
Screw connection
