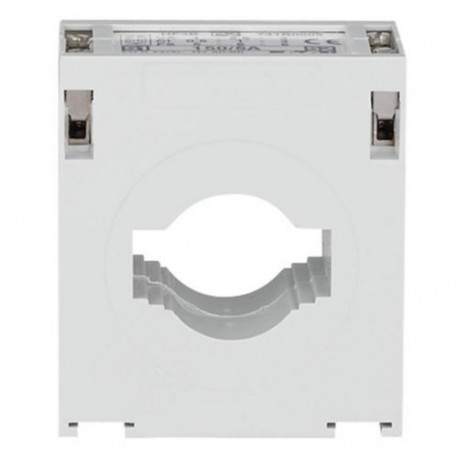

HF3B-400/1A 741B0038 Y7-135317 EATON ELECTRIC HF3B Current Transformer, 400A/1A
HF3B-400/1A
741B0038
Y7-135317
EATON - MOELLER
1 Pcs.
Automation > Current transformer
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller HF3B-400/1A through-feed current converter is applied in power distribution panels to transform high alternating current levels into safe, proportional signals for instrumentation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 400 A
- Rated secondary current (EF007471): 1 A
- Rated secondary apparent power (EF007470): 2.5 VA
- Accuracy class (EF008842): 3
- Overcurrent limiting factor (EF007511): FS 5
- Calibrated (EF008836): No
- With contact protection (EF008186): No
- Height opening (EF012757): 23 mm
- Width opening (EF012758): 30 mm
- Opening diameter (EF005153): 23 mm
- Snap mounting (EF007462): Yes
- With copper rail (EF007380): No
- Secondary connection (EF021093): Screw connection
- Number of primary inputs (EF006947): 1
