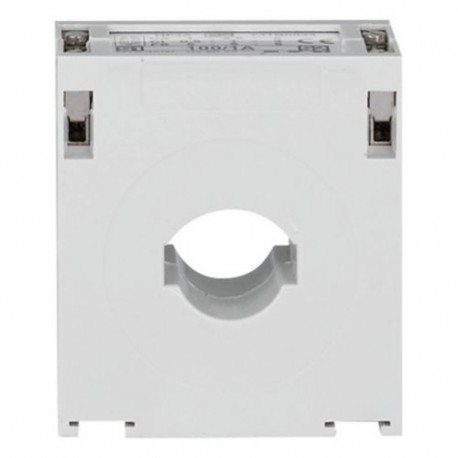

HF3A-80/5A 741B0087 Y7-135338 EATON ELECTRIC HF3A, 80A/5A Current Transformer
HF3A-80/5A
741B0087
Y7-135338
EATON - MOELLER
1 Pcs.
Automation > Current transformer
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller HF3A-80/5A current transformer functions as a through-feed converter built to translate high primary line loads into safe, proportional secondary measurements. It is commonly implemented in electrical switchboards to supply precise current signals to instrumentation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 80 A
- Rated secondary current (EF007471): 5 A
- Rated secondary apparent power (EF007470): 2 VA
- Accuracy class (EF008842): 3
- Overcurrent limiting factor (EF007511): FS 5
- Calibrated (EF008836): No
- With contact protection (EF008186): No
- Height opening (EF012757): 17 mm
- Width opening (EF012758): 20 mm
- Opening diameter (EF005153): 17 mm
- Snap mounting (EF007462): Yes
- With copper rail (EF007380): No
- Secondary connection (EF021093): Screw connection
- Number of primary inputs (EF006947): 1
