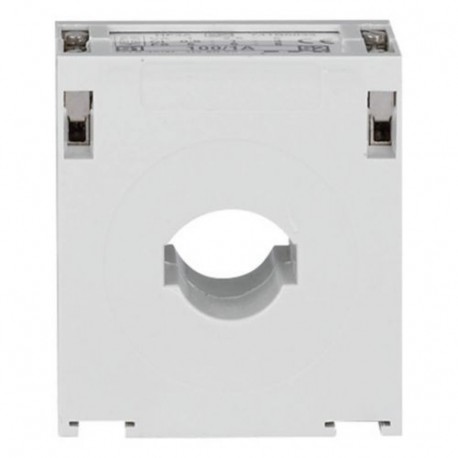

EATON - MOELLER HF3A-75/1A HF3A-75/1A 741B0032 Y7-135311 EATON ELECTRIC HF3A, 75A/1A Current Transformer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HF3A-75/1A 741B0032 Y7-135311 EATON ELECTRIC HF3A, 75A/1A Current Transformer

HF3A-75/1A

741B0032

Y7-135311

EATON - MOELLER

1 Pcs.

HF3A, 75A/1A Current Transformer HF3A-75/1A Eaton Distribution parts. Current transformer HF3A, 75A/1A Current transformer HF3A, Class 0.5, single phase, 75A/1A

Automation > Current transformer
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller HF3A-75/1A is a through-feed current converter designed to accurately scale down primary electrical currents for panel meters, control systems, and monitoring instrumentation. These units are deployed in electrical enclosures to ensure safe, proportional signal conversion for low-voltage applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Through-feed current converter
  • Rated primary current: 75 A
  • Rated secondary current: 1 A
  • Rated secondary apparent power: 1.5 VA
  • Accuracy class: 3
  • Overcurrent limiting factor: FS 5
  • Calibrated: No
  • With contact protection: No
  • Height opening: 17 mm
  • Width opening: 20 mm
  • Opening diameter: 17 mm
  • Snap mounting: Yes
  • With copper rail: No
  • Secondary connection: Screw connection
  • Number of primary inputs: 1

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
741B0032
Model Code
HF3A-75/1A
EAN
5703498700265
Product Length/Depth
54 mm
Product Height
28 mm
Product Width
60 mm
Product Weight
0.255 kg
Compliances
RoHS conform

Product specifications

Opening width - min
20 mm
Opening height - min
17 mm
Nominal current
75 A
Number of inputs (primary)
1
Opening diameter
17 mm
Opening height - max
17 mm
Secondary current input
1 A
Secondary rated apparent power
1.5 VA
Opening width - max
20 mm
Accuracy class (ratio)
3
Model
Through-feed current converter
Mounting method
Snap mounting
Over current limiting factor
FS 5
Secondary connection
Screw connection

Product Datasheet
