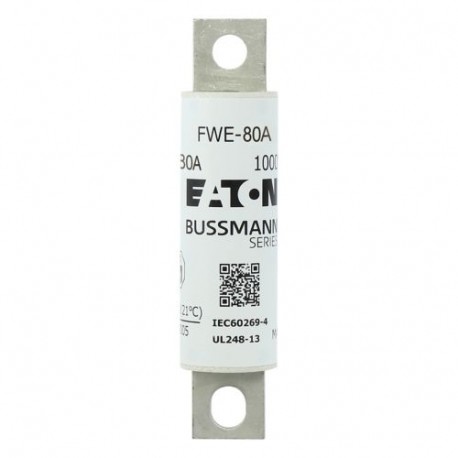

EATON - MOELLER FWE-80A FWE-80A EATON ELECTRIC 1000Vdc IEC/UL 80A aR 25mm Round fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FWE-80A EATON ELECTRIC 1000Vdc IEC/UL 80A aR 25mm Round fuse

FWE-80A

FWE-80A

FWE-80A

EATON - MOELLER

1 Pcs.

1000Vdc IEC/UL 80A aR 25mm Round fuse

Automation > HRC fuse
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for round fuse mounting configurations, this Eaton Moeller FWE-80A cylindrical fuse-link offers reliable circuit protection in demanding electrical setups. Round fuses are typically integrated into specialized enclosures and modular fuse holders.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated voltage AC (EF007682): None V
  • Rated voltage DC (EF012281): None V
  • Rated current (EF000227): None A
  • Breaking capacity (EF005617): None kA
  • Power loss at rated current (EF012389): None W
  • Centre-to-centre distance of connections (EF021151): None mm

More info

▲

General specifications

Product Name
Eaton Bussmann series high speed fuse for EV charging stations
Catalog Number
FWE-80A
EAN
5027590590075
Product Length/Depth
110 mm
Product Height
110 mm
Product Width
25.4 mm
Product Weight
100 g
Certifications
CE
IEC 60269-4
UL 248-13

Product specifications

Application
EV Charging stations
Amperage Rating
80 A
Breaking capacity
100 kA
Voltage type
DC
Class
Class aR
Clearing (I2T)
7240
Watt losses
24 W
Pre arc (I2T)
1020
Voltage rating
1000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
