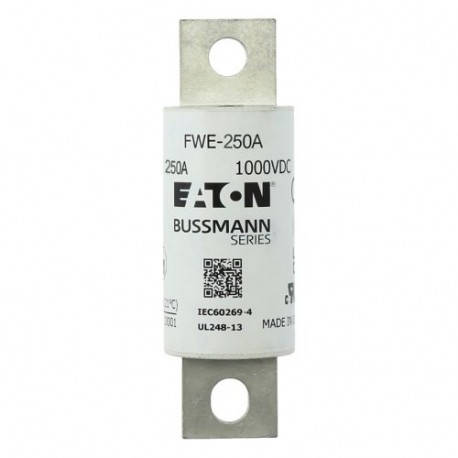

EATON - MOELLER FWE-250A FWE-250A EATON ELECTRIC 1000Vdc IEC/UL 250A aR 40mm Round fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FWE-250A EATON ELECTRIC 1000Vdc IEC/UL 250A aR 40mm Round fuse

FWE-250A

FWE-250A

FWE-250A

EATON - MOELLER

1 Pcs.

1000Vdc IEC/UL 250A aR 40mm Round fuse

Automation > HRC fuse
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing specialized circuit interruption, the Eaton Moeller FWE-250A functions as a round fuse-link suited for advanced power electronics. Industrial engineers integrate such links into high-performance enclosures to maintain strict electrical safety standards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated voltage AC (EF007682): None V
  • Rated voltage DC (EF012281): None V
  • Rated current (EF000227): None A
  • Breaking capacity (EF005617): None kA
  • Power loss at rated current (EF012389): None W
  • Centre-to-centre distance of connections (EF021151): None mm

More info

▲

General specifications

Product Name
Eaton Bussmann series high speed fuse for EV charging stations
Catalog Number
FWE-250A
EAN
5027590590150
Product Height
122 mm
Product Weight
240 g

Product specifications

Application
EV Charging stations
Amperage Rating
250 A
Breaking capacity
100 kA
Voltage type
DC
Class
Class aR
Clearing (I2T)
46700
Watt losses
79 W
Pre arc (I2T)
9940
Voltage rating
1000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
