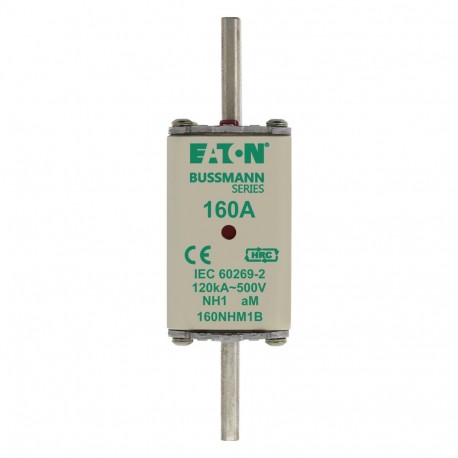

EATON - MOELLER FUSE NH 1 AM 160A 500V D.I. FUSE NH 1 AM 160A 500V D.I. 160NHM1B EATON ELECTRIC cartridge fuse, BT, 160 A, AC 500 V, NH1, aM, IEC, indic.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FUSE NH 1 AM 160A 500V D.I. 160NHM1B EATON ELECTRIC cartridge fuse, BT, 160 A, AC 500 V, NH1, aM, IEC, indic..

FUSE NH 1 AM 160A 500V D.I.

160NHM1B

EATON - MOELLER

3 Pcs.

cartridge fuse, BT, 160 A, AC 500 V, NH1, aM, IEC, indicator dual fuse cartridge, BT, 160 A, AC 500 V, NH1, aM, IEC, dual indicator Fuse, Fuse-link, low voltage, 160 A, AC 500 V, NH1, aM, IEC, dual indicator, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Fuse-link, low voltage, 160 A, AC 500 V, NH1, aM, IEC, dual indicator
Fuse, Fuse-link, low voltage, 160 A, AC 500 V, NH1, aM, IEC, dual indicator, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA
[

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
low voltage
Rated current [I]
160 A
Rated voltage
AC 500 V
Construction size
NH1
Utilization category
aM
Status indicator
dual (combination) indicator system
Description
live gripping lugs
Breaking Capacity
120 kA
Standard/Approval
IEC
Shape
square-body with knife blade contacts
Standards/Regulations
IEC 60269-2 fuse system A
DIN 43620
VDE 0636-2
,

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
NH1
Rated current
160 A
Rated voltage
500 V
Voltage type
AC
Rated switching capacity
120 kA
Utilization category
aM (switchgear protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No
]

ETIM for 160NHM1B Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH1
Voltage type (EF000187) AC
Rated current (EF000227) 160 A
Utilization category according to IEC 60269 (EF002572) aM (switchgear protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
