EATON - MOELLER FUSE NH SIZE 1 AM 100A 500V FUSE NH SIZE 1 AM 100A 500V 100NHM1B EATON ELECTRIC Fuse-link, LV, 100 A, AC 500 V, NH00, aM, IEC, dual indi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FUSE NH SIZE 1 AM 100A 500V 100NHM1B EATON ELECTRIC Fuse-link, LV, 100 A, AC 500 V, NH00, aM, IEC, dual indi..

FUSE NH SIZE 1 AM 100A 500V

100NHM1B

100NHM1B

EATON - MOELLER

3 Pcs.

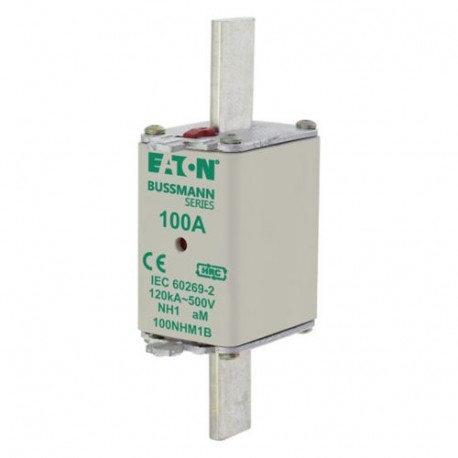

Fuse-link, LV, 100 A, AC 500 V, NH00, aM, IEC, dual indicator, live gripping lugs FUSE NH SIZE 1 AM 100A 500V Fuse, Fuse-link, low voltage, 100 A, AC 500 V, NH1, aM, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller LV fuse-link acts as a protective device designed to interrupt excessive electrical currents, thereby safeguarding industrial circuits and switchgear from overload and short-circuit damage. This component is commonly deployed in commercial and heavy-duty electrical distribution panels to maintain system reliability and safety.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH1
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 100 A
  • Rated voltage AC (EF007682): 500 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 6.7 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
100NHM1B
EAN
5027590428361
Product Length/Depth
135 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
399.3333333 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
100 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class aM

Product specification

Fuse size
NH1
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD1-D Single pole NH Fuse base
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
