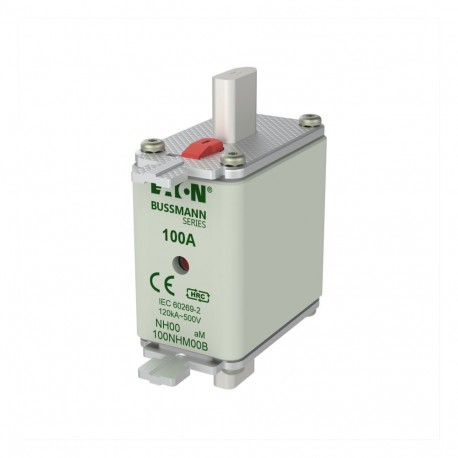

EATON - MOELLER FUSE NH SIZE 00 aM 100A 500V FUSE NH SIZE 00 aM 100A 500V 100NHM00B EATON ELECTRIC NH fuse base, 160A, 160A/500V, 100A/690V, NH00 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FUSE NH SIZE 00 aM 100A 500V 100NHM00B EATON ELECTRIC NH fuse base, 160A, 160A/500V, 100A/690V, NH00

FUSE NH SIZE 00 aM 100A 500V

100NHM00B

100NHM00B

EATON - MOELLER

3 Pcs.

NH fuse base, 160A, 160A/500V, 100A/690V, NH00 FUSE NH SIZE 00 aM 100A 500V Eaton Fuse-link, LV, 100 A, AC 500 V, NH00, aM, IEC, dual indicator, live gripping lugs Fuse, Fuse-link, low voltage, 100 A, AC 500 V, NH00, aM, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
100NHM00B
EAN
5027590428309
UPC
051712233613
Product Length/Depth
79 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
203 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
100 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class aM

Product specification

Fuse size
NH00
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

ETIM for 100NHM00B Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH00
Voltage type (EF000187) AC
Rated current (EF000227) 100 A
Rated voltage AC (EF007682) 500 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) aM (switchgear protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
Power loss at rated current (EF012389) 5.5 W

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
