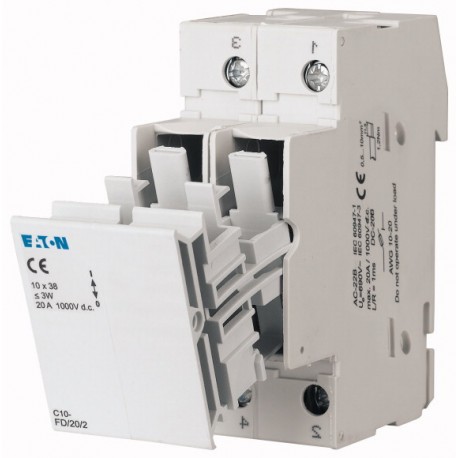

FCFDC10DI-2L-SOL 137259 EATON ELECTRIC Fuse-disconnector with flashing light, 25A DC, 10x38 mm
FCFDC10DI-2L-SOL
137259
EATON - MOELLER
1 Pcs.
Connectors > Fuse switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Eaton Moeller Fuse-disconnector with flashing light, 25A DC, 10x38 mm safely isolates photovoltaic and direct current control circuits while housing protective fuse links. Technicians utilize inline fuse disconnectors to safeguard sensitive electronic equipment from overcurrent conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as safety switch (EF006985): Yes
- Max. rated operation voltage Ue AC (EF007355): 0 V
- Rated permanent current Iu (EF001389): 25 A
- Conditioned rated short-circuit current Iq (EF001444): 10 kA
- Rated short-time withstand current lcw (EF007050): 0 kA
- Suitable for fuses (EF006692): Shape C1-C3
- Number of poles (EF001391): 2
- With error protection (EF007384): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Equipped with connectors (EF011696): No
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): No
- Suitable for busbar mounting (EF007259): No
- Position control element (EF009410): Front
- Motor drive optional (EF007386): No
More info
▲Delivery program
Utility buildings
Open areas
The trip indication signals the tripped fuse link: 50 - 400 V flashing, 400 - 1000 V continuous
for cylindrical fuse links for photovoltaic application
sealable
