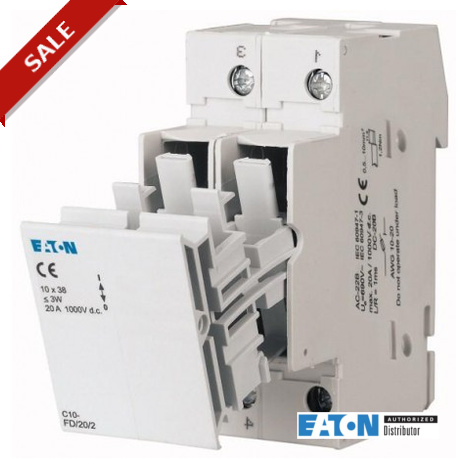

EATON - MOELLER FCFDC10DI-1L-SOL FCFDC10DI-1L-SOL 137258 EATON ELECTRIC Fuse-disconnector with flashing light, 25A DC, 10x38 mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FCFDC10DI-1L-SOL 137258 EATON ELECTRIC Fuse-disconnector with flashing light, 25A DC, 10x38 mm

FCFDC10DI-1L-SOL

137258

EATON - MOELLER

1 Pcs.

Fuse-disconnector with flashing light, 25A DC, 10x38 mm String protection of the PV generator, the trip indication shows the blowing of fuse link, 50-400 V flashing, 400-1000 V continuous light, rated operating voltage 1000 VDC, for cylindrical fuse links for photovoltaic application, can be sealed

Connectors > Fuse switch disconnector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller FCFDC10DI-1L-SOL fuse-disconnector units provide specialized overcurrent protection and manual switching for direct current photovoltaic systems and related DC applications. These compact devices securely house cylindrical fuse links while incorporating diagnostic indicator features to alert operators of blown fuse conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operational voltage: U e
  • Rated operational current 240 V: I e
  • Version as main switch (EF006981): No
  • Version as safety switch (EF006985): Yes
  • Max. rated operation voltage Ue AC (EF007355): 0 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated short-time withstand current lcw (EF007050): 0 kA
  • Suitable for fuses (EF006692): Shape C1-C3
  • Number of poles (EF001391): 1
  • With error protection (EF007384): No
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Equipped with connectors (EF011696): No
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): No
  • Suitable for busbar mounting (EF007259): No

More info

▲
Delivery program
Product range
Fuse disconnector
Application field
Residential buildings
Utility buildings
Open areas
Description
String protection of the PV generator
The trip indication signals the tripped fuse link: 50 - 400 V flashing, 400 - 1000 V continuous
for cylindrical fuse links for photovoltaic application
sealable
Connection
With flashing function
Rated operational voltage
Ue V 1000
Rated operational current 240 V
Ie A 25
Size
10 x 38
Number of poles
1 pole
Technical data
Rated operational voltage
Ue V 1000
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Fuse switch disconnector (EC001040)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Fuse switch disconnector ([email protected] [AKF058013])
Version as main switch
No
Version as safety switch
Yes
Max. rated operation voltage Ue AC
V 0
Rated permanent current Iu
A 25
Rated operation power at AC-23, 400 V
kW 0
Conditioned rated short-circuit current Iq
kA 10
Rated short-time withstand current lcw
kA 0
Suitable for fuses
Shape C1-C3
Number of poles
1
With error protection
No
Type of electrical connection of main circuit
Screw connection
Cable entry
Equipped with connectors
Suitable for ground mounting
No
Suitable for front mounting 4-hole
No
Suitable for busbar mounting
No
Type of control element
Other
Position control element
Front side
Motor drive optional
No
Motor drive integrated
No
Version as emergency stop installation
No
Degree of protection (IP), front side
IP20
