> EATON - MOELLER > Industrial Fuse Bases > 093301

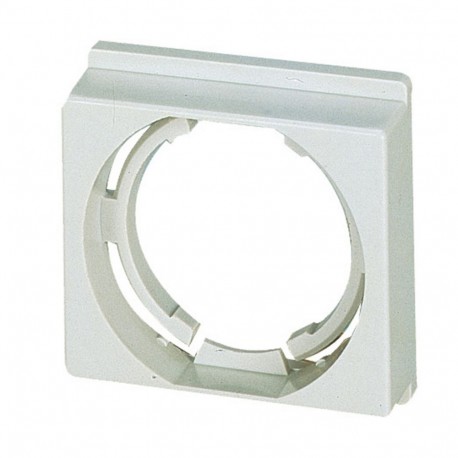

EATON - MOELLER P-E33 P-E33 093301 Y7-93301 EATON ELECTRIC Fuse cover for S 33-1/c View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P-E33 093301 Y7-93301 EATON ELECTRIC Fuse cover for S 33-1/c

P-E33

093301

Y7-93301

EATON - MOELLER

1 Pcs.

Fuse cover for S 33-1/c Fuse Base Cover Eaton Distribution parts, Fuse cover for S 33-1/c

Automation > D-system protective cover
Industrial Fuse Bases

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
093301
Model Code
P-E33
EAN
4015080933014
Product Length/Depth
17 mm
Product Height
60 mm
Product Width
52 mm
Product Weight
0.018 kg
Compliances
RoHS conform

Product specifications

Type
Special features
Standard front dimension 45 mm
Number of Poles
Single-pole
Frame
Other
Used with
S…-1/…
Accessory
Cover for 1 pole fuse base
Fuse bases
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Functions
Accessory

ETIM for 093301 Circuit breakers and fuses (EC000241)
Feature Name Feature Value
Number of poles (EF001391) 1
Construction size (EF002566) Other
