EATON - MOELLER FUSE 900A 1000V 3TN/110 AR UR FUSE 900A 1000V 3TN/110 AR UR 170M8638 EATON ELECTRIC Fuse-link, high speed, 900 A, AC 1000 V, DIN 3, 74 x 9.. View larger

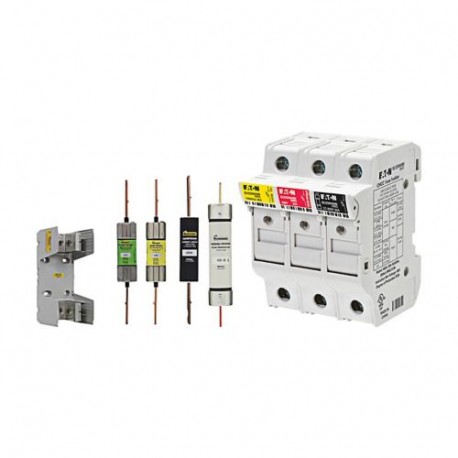

Images are for illustrative purposes only. Please refer to data sheet for details

FUSE 900A 1000V 3TN/110 AR UR 170M8638 EATON ELECTRIC Fuse-link, high speed, 900 A, AC 1000 V, DIN 3, 74 x 9..

FUSE 900A 1000V 3TN/110 AR UR

170M8638

170M8638

EATON - MOELLER

1 Pcs.

Fuse-link, high speed, 900 A, AC 1000 V, DIN 3, 74 x 90 x 139 mm, aR, DIN, IEC, single indicator FUSE 900A 1000V 3TN/110 AR UR

Automation > Low Voltage HRC fuse
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for high-capacity applications, this Eaton Moeller FUSE 900A 1000V 3TN/110 AR UR fuse-link provides robust circuit protection. DIN-style high-speed fuses are commonly utilized in large industrial power distribution units and motor control setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: FUSE 900A 1000V 3TN/110 AR UR
  • Catalogue code: 170M8638
  • Catalogue title: FUSE 900A 1000V 3TN/110 AR UR 170M8638 EATON ELECTRIC Fuse-link, high speed, 900 A, AC 1000 V, DIN 3, 74 x 9..
  • Product description: General specifications Product Name Eaton Bussmann series high speed square body fuse Catalog Number 170M8638 EAN 5996516022634 UPC 051712604406 Product Length/Depth 141 mm Product Height 76 mm Product Width 82.5 mm Prod
  • Manufacturer summary: Fuse-link, high speed, 900 A, AC 1000 V, DIN 3, 74 x 90 x 139 mm, aR, DIN, IEC, single indicator FUSE 900A 1000V 3TN/110 AR UR

More info

▲

General specifications

Product Name
Eaton Bussmann series high speed square body fuse
Catalog Number
170M8638
EAN
5996516022634
UPC
051712604406
Product Length/Depth
141 mm
Product Height
76 mm
Product Width
82.5 mm
Product Weight
1275 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC Rated
UL Recognized

Product specifications

Type
Fuse
Application
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
Amperage Rating
900 A
Breaking capacity
125 kA
Fuse indicator
Top fuse status indicator
Insulated metal gripping lugs (IMGL)
No
Utilization category
aR (accompanied semiconductor protection)
Voltage type
AC/DC
Fuse size
3
Rated voltage AC
1000 V
Center-to-center distance of connections
108 mm
Current type
AC
Mounting dimension
M10
Class
Class aR
Clearing (I2T)
150000 at 1000 V
Watt losses
145 W
Fuse shape
Square body, slotted center bolted tags
Pre arc (I2T)
250000
Color
None
Interrupt rating
125 kAIC
Construction size
3
Packaging type
Standard
Voltage rating
1000 V (IEC)
Fuse type
DIN 43653
TN/110 Type T Indicator for Micro
Bolted tag
Fuse system (according to IEC 60269)
Other
