View larger
Images are for illustrative purposes only. Please refer to data sheet for details

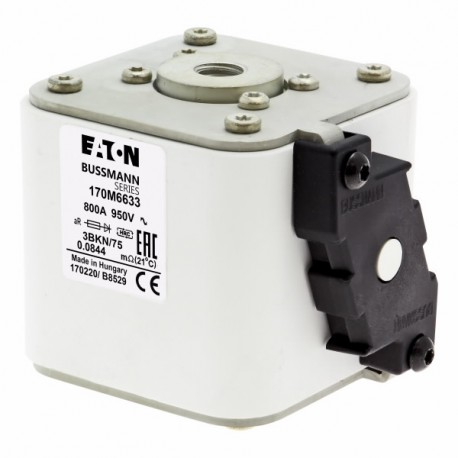

FUSE 800A 950V 3BKN/75 AR 170M6633 EATON ELECTRIC Fuse-link, high speed, 800 A, AC 950 V, size 3, 76 x 92 x ..
FUSE 800A 950V 3BKN/75 AR
170M6633
170M6633
EATON - MOELLER
2 Pcs.
Fuse-link, high speed, 800 A, AC 950 V, size 3, 76 x 92 x 75 mm, aR, IEC, single indicator
FUSE 800A 950V 3BKN/75 AR
Automation > Low Voltage HRC fuse
Bussmann Series High speed fuses
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Fuse-link, high speed, 800 A, AC 950 V, size 3, 76 x 92 x 75 mm, aR, IEC, single indicator
Fuse, Fuse-link, high speed, 800 A, AC 950 V, size 3, 76 x 92 x 75 mm, aR, IEC, single indicator, square body with flush end contacts, indicator style K for microswitch, semiconductor protection, IEC 60269-4, Breaking Capacity 100 kA
General specifications
Product name
Eaton Bussmann series high speed square body fuse
Part no.
170M6633
EAN
5027590463119
Product Length/Depth
90 millimetre
Product height
74 millimetre
Product width
160 millimetre
Product weight
0.001 gram
Compliances
EAC
CE
RoHS Compliant
CE
RoHS Compliant
Certifications
IEC 60269-4
Product Tradename
None
Product Type
High speed square body fuse
Product Sub Type
None
Electrical data
Amperage Rating
800 A
Voltage rating
950 V
Interrupt rating
100 kAIC
Class
Class aR
Product specifications
Application
semiconductor protection
Fuse type
Flush end
Fuse indicator
Other
Fuse size
3
Technical data ETIM 8.0
Circuit breakers and fuses (EG000020) / HRC fuse (EC004556)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Safety fuse inserts (unspecified) ([email protected] [BAB264011])
Fuse construction type according to IEC 60269
3
Type of current
AC
Rated voltage AC
950 V
Rated voltage DC
V
Rated current
800 A
Utilization category
aR (accompanied semiconductor protection)
Breaking capacity
100 kA
Colour code
None
Type of fuse status indicator
Other
Power loss at rated current
125 W
Mounting holes
Other
Centre-to-centre distance of connections
75.4 mm
