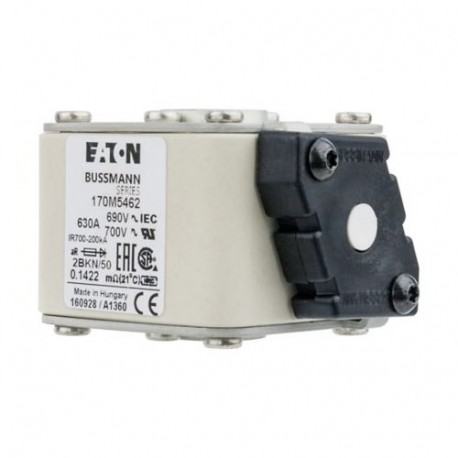

EATON - MOELLER FUSE 630A 690V 2BKN/50 AR UC FUSE 630A 690V 2BKN/50 AR UC 170M5462 EATON ELECTRIC Fuse-link, high speed, 630 A, AC 690 V, size 2, aR, IEC.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FUSE 630A 690V 2BKN/50 AR UC 170M5462 EATON ELECTRIC Fuse-link, high speed, 630 A, AC 690 V, size 2, aR, IEC..

FUSE 630A 690V 2BKN/50 AR UC

170M5462

170M5462

EATON - MOELLER

6 Pcs.

Fuse-link, high speed, 630 A, AC 690 V, size 2, aR, IEC, UL, single indicator FUSE 630A 690V 2BKN/50 AR UC

Automation > Low Voltage HRC fuse
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller FUSE 630A 690V 2BKN/50 AR UC is a high-speed square body fuse designed to provide specialized overcurrent protection for power semiconductors in industrial drive systems. High-speed fuses limit fault energy effectively to protect expensive electronic components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: FUSE 630A 690V 2BKN/50 AR UC
  • Catalogue code: 170M5462
  • Catalogue title: FUSE 630A 690V 2BKN/50 AR UC 170M5462 EATON ELECTRIC Fuse-link, high speed, 630 A, AC 690 V, size 2, aR, IEC..
  • Manufacturer summary: Fuse-link, high speed, 630 A, AC 690 V, size 2, aR, IEC, UL, single indicator FUSE 630A 690V 2BKN/50 AR UC

More info

▲

General specifications

Product Name
Eaton Bussmann series high speed square body fuse
Catalog Number
170M5462
Model Code
FUSE 630A 690V 2BKN/50 AR UC
EAN
5027590457293
UPC
051712793223
Product Length/Depth
77 mm
Product Height
59 mm
Product Width
51 mm
Product Weight
558 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC Rated
UL Recognized

Electrical data

Amperage Rating
630 A
Voltage rating
690 V (IEC), 700 V (UL)
Voltage type
AC
Clearing (I2T)
275000 at 660 V
Pre arc (I2T)
41000
Watt losses
90 W
Breaking capacity
200 kA
Class
Class aR

Product specification

Fuse size
2
Fitted with:
Type K Indicator for micro
