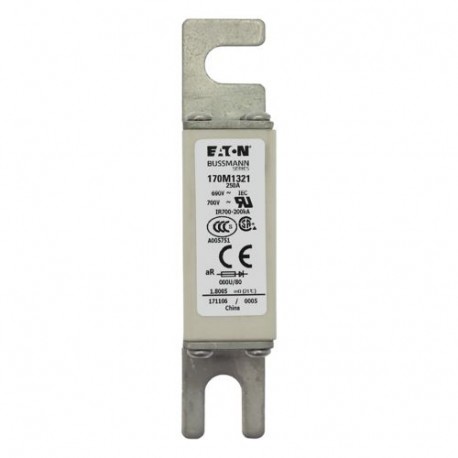

EATON - MOELLER FUSE 250A 690V 000U/80 AR UC FUSE 250A 690V 000U/80 AR UC 170M1321 EATON ELECTRIC Fuse-link, high speed, 250 A, AC 690 V, DIN 000, 21 x 4.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FUSE 250A 690V 000U/80 AR UC 170M1321 EATON ELECTRIC Fuse-link, high speed, 250 A, AC 690 V, DIN 000, 21 x 4..

FUSE 250A 690V 000U/80 AR UC

170M1321

170M1321

EATON - MOELLER

10 Pcs.

Fuse-link, high speed, 250 A, AC 690 V, DIN 000, 21 x 40 x 100 mm, aR, DIN, IEC FUSE 250A 690V 000U/80 AR UC

Automation > Low Voltage HRC fuse
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series high speed square body fuse
Catalog Number
170M1321
Model Code
FUSE 250A 690V 000U/80 AR UC
EAN
5027590515535
UPC
051712216579
Product Length/Depth
105 mm
Product Height
46 mm
Product Width
300 mm
Product Weight
140.3 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC Rated
UL Recognized

Electrical data

Amperage Rating
250 A
Voltage rating
690 V (IEC), 700 V (UL)
Voltage type
AC
Clearing (I2T)
51500 at 660 V
Pre arc (I2T)
7750
Watt losses
42 W
Breaking capacity
200 kA
Class
Class aR

Product specification

Fuse size
000
