View larger
Images are for illustrative purposes only. Please refer to data sheet for details

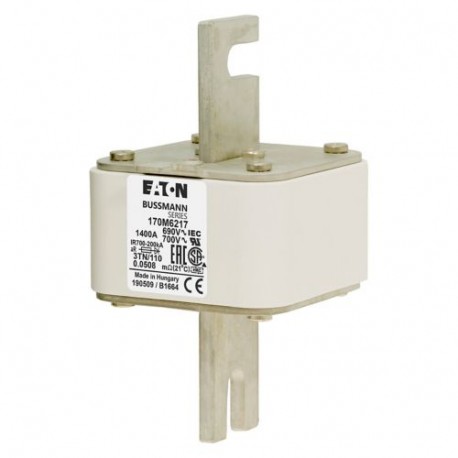

FUSE 1400A 690V 3TN/110 AR UC 170M6217 EATON ELECTRIC Fuse-link, high speed, 1400 A, AC 690 V, DIN 3, 76 x 9..
FUSE 1400A 690V 3TN/110 AR UC
170M6217
170M6217
EATON - MOELLER
1 Pcs.
Fuse-link, high speed, 1400 A, AC 690 V, DIN 3, 76 x 90 x 139 mm, aR, DIN, IEC, type T indicator
FUSE 1400A 690V 3TN/110 AR UC
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 1400A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620
Automation > Low Voltage HRC fuse
Bussmann Series High speed fuses
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series high speed square body fuse
Catalog Number
170M6217
Model Code
FUSE 1400A 690V 3TN/110 AR UC
EAN
5996516018392
UPC
051712263412
Product Length/Depth
168 mm
Product Height
76 mm
Product Width
95 mm
Product Weight
1196 g
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
UL Recognized
IEC Rated
IEC Rated
Product specifications
Type
Fuse
Application
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
Amperage Rating
1400 A
Breaking capacity
200 kA
Fuse indicator
Top fuse status indicator
Insulated metal gripping lugs (IMGL)
No
Utilization category
aR (accompanied semiconductor protection)
Voltage type
AC
Fuse size
3
Rated voltage AC
690 V
Center-to-center distance of connections
108 mm
Current type
AC
Mounting dimension
M10
Class
Class aR
Clearing (I2T)
2450000 at 660 V
Watt losses
155 W
Clearing loss
155
Fuse shape
Square body, slotted center bolted tags
Pre arc (I2T)
100000
Color
None
Interrupt rating
200 kAIC
Connection
Blade end x blade end
Construction size
3
Packaging type
Standard
Voltage rating
690 V (IEC), 700 V (UL)
Fuse type
DIN 43653
TN/110 Type T Indicator for Micro
Bolted tag
TN/110 Type T Indicator for Micro
Bolted tag
Fuse system (according to IEC 60269)
Other
