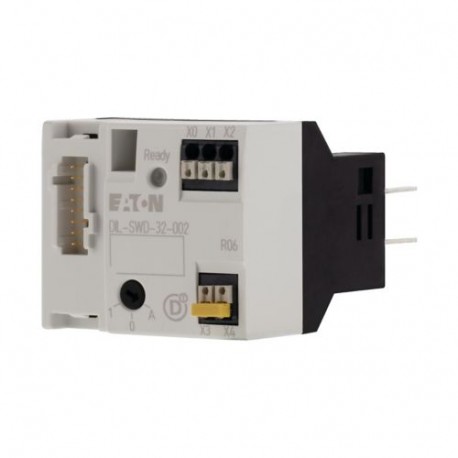

DIL-SWD-32-002 118561 Y7-118561 EATON ELECTRIC Function element, contactor, SmartWire-DT, DIL/MSC, manual/au..
DIL-SWD-32-002
118561
Y7-118561
EATON - MOELLER
5 Pcs.
Automation > Fieldbus, decentr. periphery - digital I/O module
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A function element contactor, the Eaton Moeller DIL-SWD-32-002, integrates switching devices into a SmartWire-DT communication network for streamlined motor control wiring. This hardware links directly to contactors to reduce traditional control circuit cabling and provide diagnostic feedback.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Supply voltage AC 50 Hz (EF007532): 0 V
- Supply voltage AC 60 Hz (EF007533): 0 V
- Supply voltage DC (EF007534): 15 V
- Voltage type (supply voltage) (EF002991): DC
- Number of digital inputs (EF001992): 2
- Number of digital outputs (EF001993): 1
- Digital inputs configurable (EF008516): false
- Digital outputs configurable (EF008520): false
- Input current at signal 1 (EF001428): 3 mA
- Permitted voltage at input (EF007554): 15 V
- Type of voltage (input voltage) (EF003033): DC
- Output current (EF003202): 0.5 A
- Permitted voltage at output (EF007553): 20.4 V
- Type of output voltage (EF008222): DC
- Short-circuit protection, outputs available (EF003203): false
- Number of HW-interfaces industrial Ethernet (EF003020): 0
More info
▲General specifications
IEC/EN 60947
UL
EN 50178
CE
CSA File No.: 2324643
CSA Class No.: 3211-07
UL File No.: E29184
IEC/EN 61131-2
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
CSA
Features & Functions
For connecting the contactors to SmartWire-DT
Contactor actuation
Control mode
General
Ambient conditions, mechanical
Climatic environmental conditions
Electro Magnetic Compatibility
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
Terminal capacities
0.25 - 1.5 mm², flexible with ferrule
Electrical Rating
Magnet system
188 mA (for DILM 12-15)
500 mA (for DILM 17-38)
4.5 W for DILM 12-15 (Sealing power)
12 W for DILM 17-38 (Pick-up power)
3 W for DILM 7-9 (Sealing power)
4.5 W for DILM 12-15 (Pick-up power)
0.5 W for DILM 17-38 (Sealing power)
21 mA, SmartWire-DT network for DILM 17-38
125 mA, SmartWire-DT network for DILM 7-9
Communication
Push in terminals, Auxiliary contact
External device plug SWD4-8SF2-5, SmartWire-DT
