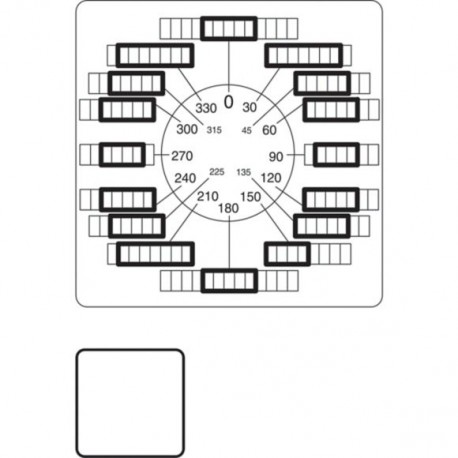

EATON - MOELLER FS(*)-P3 FS(*)-P3 231895 Y7-231895 EATON ELECTRIC Front plate, text according to data, P3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FS(*)-P3 231895 Y7-231895 EATON ELECTRIC Front plate, text according to data, P3

FS(*)-P3

231895

Y7-231895

EATON - MOELLER

1 Pcs.

Front plate, text according to data, P3 FS(*)-P3 Front plate, For use with T5B, T5, P3, 84 x 84 (for frame 88 x 88) mm, can be engraved Front plate, Standard front plate, Can be laser-engraved, → Note, Dimensions (W x H): 84 x 84 (for frame 88 x 88) mm, For use with: T5B, T5, P3

Automation > Accessories/spare parts for low-voltage switch technology
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Front plate, For use with T5B, T5, P3, 84 x 84 (for frame 88 x 88) mm, can be engraved
Front plate, Standard front plate, Can be laser-engraved, → Note, Dimensions (W x H): 84 x 84 (for frame 88 x 88) mm, For use with: T5B, T5, P3

General specifications
Product name
Eaton Moeller® series FS Accessory Front plate
Part no.
FS(*)-P3
Product Length/Depth
1 millimetre
Product height
84 millimetre
Product width
84 millimetre
Product weight
0.003 kilogram
Certifications
UL/CSA certification not required
Product Tradename
FS
Product Type
Accessory
Product Sub Type
Front plate
Features & Functions
Features
Can be laser-engraved
General information
Accessory/spare part type
Device labeling system
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Accessories/spare parts for low-voltage switch technology (EC002498)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Component for low-voltage switching technology (accessories) (ecl@ss13-27-37-13-92 [AKN570018])
Type of accessory/spare part
Device labeling system
Accessory
Yes
Spare part
No

ETIM for 231895 Low-voltage industrial controls and switchgear (EC002498)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Device labeling system
Accessory (EF013236) Yes
Spare part (EF013237) No
