TM/E-FRONTSCHILD-NR(*) 239021 Y7-239021 EATON ELECTRIC 239021 TM/E-FRONTSCHILD-NR(*)
TM/E-FRONTSCHILD-NR(*)
239021
Y7-239021
EATON - MOELLER
1 Pcs.
239021 TM/E-FRONTSCHILD-NR(*)
TM/E-FRONTSCHILD-NR(*)

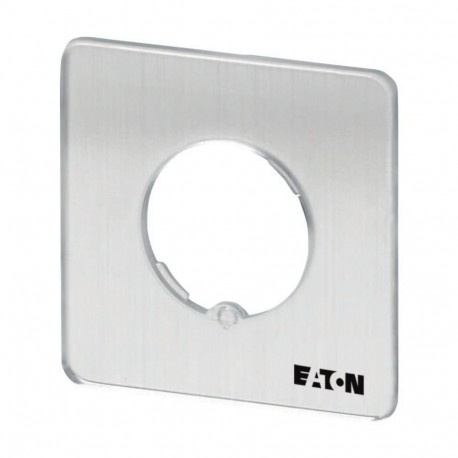

Front plate, for TM/E
Front plate, For use with: TM…/E, Dimensions (W x H): 29 x 29 (for frame 30 x 30) mm
Automation > Text plate for command devices
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Front plate, for TM/E
Front plate, For use with: TM…/E, Dimensions (W x H): 29 x 29 (for frame 30 x 30) mm
Delivery program
Basic function
Front plates
Function
Standard front plate
Can be laser-engraved, → Note
For use with
TM…/E
Dimensions (W x H)
29 x 29 (for frame 30 x 30) mm
Design verification as per IEC/EN 61439
Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+50 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Text plate for control circuit devices (EC000624)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Identification plate for command devices ([email protected] [AKF043014])
Imprint
Without imprint
Imprint ISO symbols
Without imprint
Colour
Other
Shape
Square
Width
29 mm
Height
29 mm
Outer diameter
0 mm
Approvals
North America Certification
UL/CSA certification not required
| Feature Name | Feature Value |
|---|---|
| Literal imprint (EF015918) | Other |
| Language of the imprint (EF015922) | Other |
| Imprint ISO symbols (EF006094) | Other |
| Colour (EF000007) | Silver |
| Shape (EF000051) | Square |
| Width (EF000008) | 28 mm |
| Height (EF000040) | 1 mm |
| Outer diameter (EF000015) | 0 mm |
