View larger
Images are for illustrative purposes only. Please refer to data sheet for details

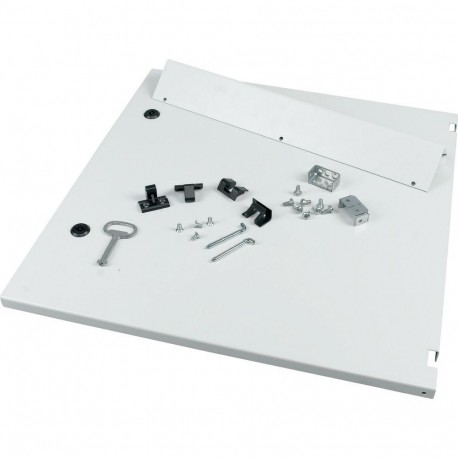

XMW2406CDC-B 158574 Y7-158574 EATON ELECTRIC Front plate/door, below, H 600mm, IP55
XMW2406CDC-B
158574
Y7-158574
EATON - MOELLER
1 Pcs.
Front plate/door, below, H=600mm, IP55
XMW2406CDC-B
Eaton xEnergy Main LV systems LV switchgear. Front plate/door, below, H=600mm, IP55, grey
MCC individual components: compartment door for fixed mounting modules, height of 600 mm suitable for bottommost position, IP55, gray RAL 7035, consisting of: compartment door, hinges, lock system, includes screw accessories. The holes for the door coupling rotary handle are already included in all doors, center punch marks have been added for control lamps/buttons. The material at these points can be drilled out if necessary.
Automation > Door/operating panel (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Main LV switchgear
Catalog Number
158574
Model Code
XMW2406CDC-B
EAN
4015081551248
Product Length/Depth
35 mm
Product Height
600 mm
Product Width
575 mm
Product Weight
6.8 kg
Compliances
RoHS conform
Product specifications
Features
EMC-version
Surface finishing
Powder coating
Color
Gray
Degree of protection
IP55
NEMA 4X
NEMA 4X
Material
Steel
Model
Stop door
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Stop door |
| Version as glazed door (EF006966) | No |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 575 mm |
| Height (EF000040) | 600 mm |
| Depth (EF000049) | 35 mm |
| EMC-version (EF001062) | Yes |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| Degree of protection (IP) (EF005474) | IP55 |
