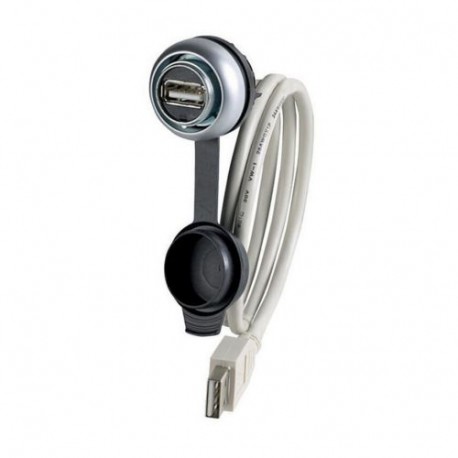

EATON - MOELLER M22-USB-SA M22-USB-SA 107412 Y7-107412 EATON ELECTRIC Front element, USB 3.0 A/A, with connection cable 0.6m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-USB-SA 107412 Y7-107412 EATON ELECTRIC Front element, USB 3.0 A/A, with connection cable 0.6m

M22-USB-SA

107412

Y7-107412

EATON - MOELLER

1 Pcs.

Front element, USB 3.0 A/A, with connection cable 0.6m M22-USB-SA Eaton Moeller® series M22 Bulkhead interface, 0.6 m, Prefabricated cable with permanently connected USB 3.0 Type A plug, Bezel: titanium Bulkhead interface, General accessories, Prefabricated cable with permanently connected USB 3.0 Type A plug, Cable length: 0.6 m, Degree of Protection: IP65 (with closed cover), IP20 (with plug connected), Bezel: titanium, Connection to SmartWire-DT: no, For use with: Front mounting, Number of poles: 9

Automation > Accessories/spare parts for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Bulkhead interface
Catalog Number
107412
Model Code
M22-USB-SA
EAN
4015081071500
Product Length/Depth
120 mm
Product Height
30 mm
Product Width
120 mm
Product Weight
0.043 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 142
IEC 6113-2
CE
UL Category Control No.: DUXR, DUXR7
UL
Certified by UL for use in Canada
IEC/EN 6113-2
UL File No.: E330994
UL report applies to both US and Canada
CSA-C22.2 No. 142
CSA Class No.: none
Catalog Notes
Prefabricated cable with permanently connected USB 3.0 Type A plug

Features & Functions

Bezel color
Titanium
Design
USB 3.0 A
Material
Titanium front ring
Number of poles
Nine-pole

General

Accessories
Connection cable
Accessory/spare part type
Accessory
Degree of protection
IP20 (with plug connected)
IP65 (with closed cover)
NEMA 12 (with closed cover)
Lifespan, mechanical
100 insertion cycles
Limit value class
3
Mounting depth
70 mm
Opening diameter
22.5 mm

Climatic environmental conditions

Ambient operating temperature - min
-20 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
25 °C
Ambient storage temperature - max
80 °C

Electrical rating

Insulation resistance
≥ 100 MΩ
Nominal current
900 A
Nominal voltage - max
30 V
Rated operational voltage
5 V AC/DC
Resistance
< 30 mΩ (volume resistance)

Communication

Connection to SmartWire-DT
No
Data transfer rate
5 GBit/s, max.

Contacts

Contact material
CuSn, gold-plated
Contact type
1:1
Force for positive opening - min
0 N

Cable

Cable length
0.6 m
Cable sheath material
Polyvinyl chloride (PVC)
Outer cable diameter
6.1 mm
Permitted bending radius
15 x cable diameter

Design verification

Heat dissipation capacity Pdiss
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 107412 Low-voltage industrial controls and switchgear (EC002024)
Feature Name Feature Value
Type of electrical accessory/spare part (EF005722) Other
Type of mechanical accessory/spare part (EF005994) Other
Accessory (EF013236) Yes
Spare part (EF013237) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
