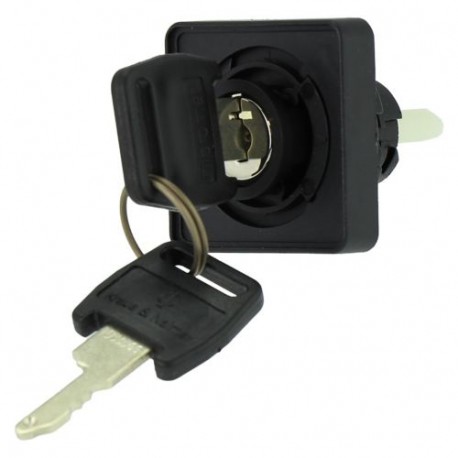

EATON - MOELLER +IVS/S-G +IVS/S-G 232043 Y7-232043 EATON ELECTRIC Front element, for TM switch, IVS-, key operation lock mechanism, k.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IVS/S-G 232043 Y7-232043 EATON ELECTRIC Front element, for TM switch, IVS-, key operation lock mechanism, k..

+IVS/S-G

232043

Y7-232043

EATON - MOELLER

1 Pcs.

Front element, for TM switch, IVS-, key operation lock mechanism, kaba no.G. Can only be sold assembled. +IVS/S-G Front element, for TM switch, IVS-, key operation lock mechanism, MICROMEC no.G Front element for TM switch, Basic function: Locking arrangements, Function: Key operation lock mechanism, MICROMEC lock 90 Grad, When ordering with basic unit, For use with: Service distribution board mounting (IVS), Information about equipment supplied: with two keys, Degree of Protection: IP65

Automation > Front element for selector switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller front element (+IVS/S-G) provides modular mechanical interfacing for cam switches and control gear inside electrical distribution assemblies. Front elements establish the secure mechanical linkage between external operator interfaces and internal switching modules.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 0
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Silver
  • Construction type lens (EF006253): Square
  • Hole diameter (EF000079): 0 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA) (EF011959): 12

More info

▲

General specifications

Product Name
Eaton Moeller® series IVS Accessory Front element for TM switch
Catalog Number
232043
Model Code
+IVS/S-G
EAN
4015082320430
Product Length/Depth
20 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.1 kg
Compliances
CE
Catalog Notes
When ordering with basic unit

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
