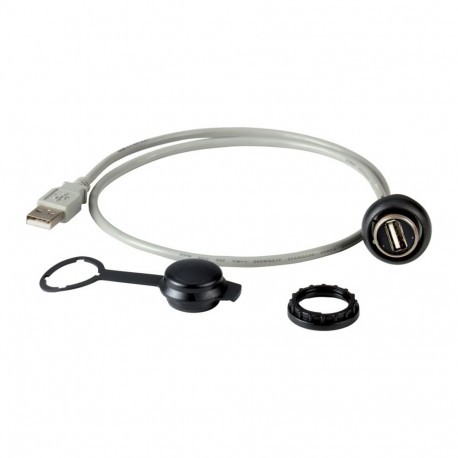

EATON - MOELLER M22S-USB-SA M22S-USB-SA 147535 Y7-147535 EATON ELECTRIC Prefabricated cable (0.6 m) with permanently connected USB 3.0 T.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-USB-SA 147535 Y7-147535 EATON ELECTRIC Prefabricated cable (0.6 m) with permanently connected USB 3.0 T..

M22S-USB-SA

147535

Y7-147535

EATON - MOELLER

1 Pcs.

Prefabricated cable (0.6 m) with permanently connected USB 3.0 Type A plug, black front element M22S-USB-SA Eaton Moeller® series M22 Bulkhead interface, 0.6 m, Prefabricated cable with permanently connected USB 3.0 Type A plug, Bezel: black Bulkhead interface, General accessories, Prefabricated cable with permanently connected USB 3.0 Type A plug, Cable length: 0.6 m, Degree of Protection: IP65 (with closed cover), IP20 (with plug connected), Bezel: black, Connection to SmartWire-DT: no, For use with: Front mounting, Number of poles: 9

Automation > Accessories/spare parts for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Bulkhead interface
Catalog Number
147535
Model Code
M22S-USB-SA
EAN
4015081439867
Product Length/Depth
120 mm
Product Height
30 mm
Product Width
120 mm
Product Weight
0.043 kg
Certifications
CE
CSA-C22.2 No. 142
CSA Class No.: none
UL 508
UL report applies to both US and Canada
IEC/EN 6113-2
UL File No.: E330994
Certified by UL for use in Canada
UL
UL Category Control No.: DUXR, DUXR7
Catalog Notes
Prefabricated cable with permanently connected USB 3.0 Type A plug

Features & Functions

Bezel color
Black
Design
USB 3.0 A
Number of poles
Nine-pole

General

Accessory/spare part type
Accessory
Degree of protection
IP20 (with plug connected)
IP65 (with closed cover)
NEMA 12 (with closed cover)
Lifespan, mechanical
100 insertion cycles
Limit value class
3
Mounting depth
70 mm
Opening diameter
22.5 mm

Climatic environmental conditions

Ambient operating temperature - min
-20 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
25 °C
Ambient storage temperature - max
80 °C

Electrical rating

Insulation resistance
≥ 100 MΩ
Nominal current
900 A
Nominal voltage - max
30 V
Rated operational voltage
5 V AC/DC
Resistance
< 30 mΩ (volume resistance)

Communication

Connection to SmartWire-DT
No
Data transfer rate
5 GBit/s, max.

Contacts

Contact material
CuSn, gold-plated
Contact type
1:1
Force for positive opening - min
0 N

Cable

Cable length
0.6 m
Cable sheath material
Polyvinyl chloride (PVC)
Outer cable diameter
6.1 mm
Permitted bending radius
15 x cable diameter

Design verification

Heat dissipation capacity Pdiss
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 147535 Low-voltage industrial controls and switchgear (EC002024)
Feature Name Feature Value
Type of electrical accessory/spare part (EF005722) Other
Type of mechanical accessory/spare part (EF005994) Other
Accessory (EF013236) Yes
Spare part (EF013237) No
