OPTC2 125067 EATON ELECTRIC Field bus module Modbus RS485 with screw terminals for variable frequency drive ..
OPTC2
125067
EATON - MOELLER
1 Pcs.
Field bus module Modbus RS485 with screw terminals for variable frequency drive SVX and SPX
OPTC2

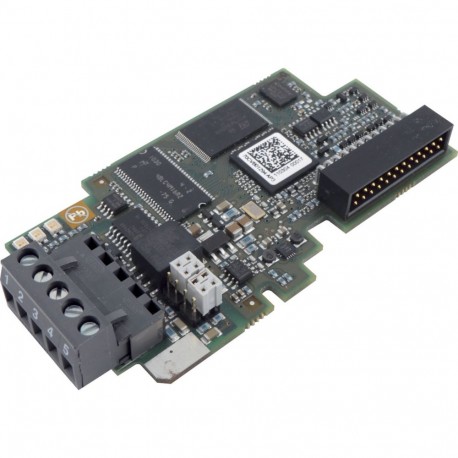

Field bus module, Bus protocol: Modbus RS485, Description: The field bus module is plugged into the variable-frequency drive., For use with: SVX, SPX, Connection technique: Screw terminals
Automation > Accessories/spare parts for frequency controller
Eaton Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller OPTC2 communication module enables fieldbus connectivity via Modbus RS485 for variable frequency drives. Interface adapters of this type integrate industrial drives into centralized control and monitoring networks.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Type of accessory/spare part (EF000215): Communication module
- Accessory (EF013236): Yes
- Spare part (EF013237): No
More info
▲General specifications
Product Name
Eaton SPX Accessory Fieldbus module
Catalog Number
125067
Model Code
OPTC2
EAN
4015081226788
Product Length/Depth
39 mm
Product Height
6 mm
Product Width
22 mm
Product Weight
0.2 kg
Certifications
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
IEC/EN61800-5
CSA-C22.2 No. 14
UL File No.: E134360
UL
IEC/EN61800-3
UL 508C
UL report applies to both US and Canada
CE
Certified by UL for use in Canada
IEC/EN61800-5
CSA-C22.2 No. 14
UL File No.: E134360
UL
IEC/EN61800-3
UL 508C
UL report applies to both US and Canada
CE
Certified by UL for use in Canada
Catalog Notes
The field bus module is plugged into the variable-frequency drive.
General
Connection type
Screw terminals
Product Category
Accessories
Suitable for
Branch circuits, (UL/CSA)
Communication
Protocol
Modbus RS485
Design verification
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
