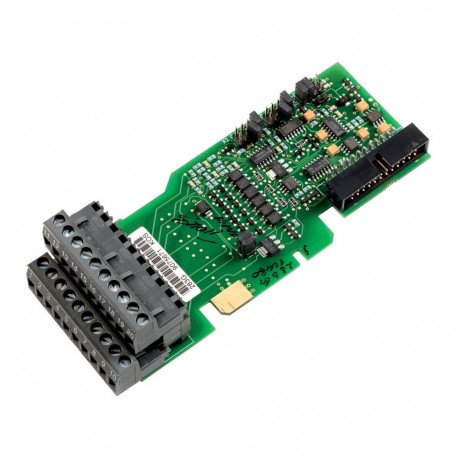

OPTAA 125056 Y7-125056 EATON ELECTRIC I/O expansion device 3DI,1RO(NO/NC)1DO for variable frequency drive SV..
OPTAA
125056
Y7-125056
EATON - MOELLER
1 Pcs.
I/O expansion device 3DI,1RO(NO/NC)1DO for variable frequency drive SVX and SPX
OPTAA
I/O expansion, Subrange: I/O expansion, Description: The expansion module is plugged into the variable-frequency drive., 3 digital inputs, 1 relay output (NO/NC), 1 digital output, For use with: SVX, SPX
Automation > Accessories/spare parts for frequency controller
Eaton Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton SPX input and output expansion
Catalog Number
125056
Model Code
OPTAA
EAN
4015081226672
Product Length/Depth
39 mm
Product Height
6 mm
Product Width
22 mm
Product Weight
0.2 kg
Certifications
IEC/EN61800-3
CE
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
UL report applies to both US and Canada
CSA-C22.2 No. 14
Certified by UL for use in Canada
UL 508C
IEC/EN61800-5
UL File No.: E134360
UL
CE
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
UL report applies to both US and Canada
CSA-C22.2 No. 14
Certified by UL for use in Canada
UL 508C
IEC/EN61800-5
UL File No.: E134360
UL
Catalog Notes
The expansion module is plugged into the variable-frequency drive.
General
Product Category
Accessories
Suitable for
Branch circuits, (UL/CSA)
Control circuit
Input
3 Digital inputs
Output
1 Relay Output (NO/NC)
1 Digital Output
1 Digital Output
Design verification
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Extension module |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
