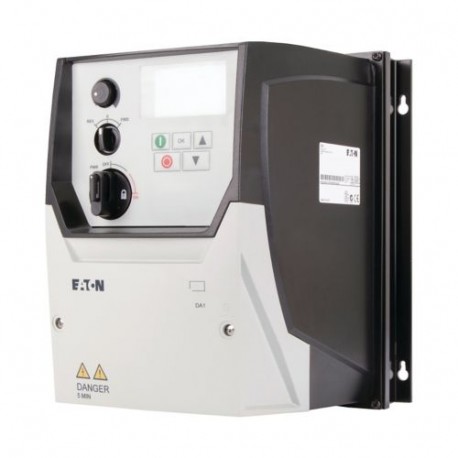

DA1-349D5FB-B6SC 169385 Y7-169385 EATON ELECTRIC Variable frequency drive, 400 V AC, 3-phase, 9.5 A, 4 kW, I..
DA1-349D5FB-B6SC
169385
Y7-169385
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for demanding motion control applications, the Eaton Moeller DA1-349D5FB-B6SC acts as a dependable variable frequency drive. Such units continuously modulate electrical frequency and voltage parameters to govern AC motor operations across automated factory environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 9.5 A
- Power consumption (EF000346): 136 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
RCM
UL Category Control No.: NMMS, NMMS7
UL
UL File No.: E172143
CE
CUL
RoHS, ISO 9001
Safety: EN 61800-5-1: 2003
Specification for general requirements: IEC/EN 61800-2
Certified by UL for use in Canada
IEC/EN 61800-3
IEC/EN61800-3
UL 508C
UL report applies to both US and Canada
EAC
UkrSEPRO
IEC/EN61800-5
General
100 m, screened, maximum permissible, Motor feeder
150 m, unscreened, maximum permissible, Motor feeder
C2 ≤ 5 m, Radio interference level, maximum motor cable length
200 m, screened, with motor choke, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
Modbus RTU, built in
CANopen®, built in
DeviceNet, optional
Ethernet IP, optional
PROFINET, optional
Modbus-TCP, optional
PROFIBUS, optional
OP-Bus (RS485), built in
NEMA 4X
Additional PCB protection
PC connection
Local controls
Radio interference suppression filter
Breaking resistance
OLED display
Internal DC link
Brake chopper
IGBT inverter
PROFIBUS
PROFINET IO
Other bus systems
DeviceNet
EtherNet/IP
MODBUS
TCP/IP
Climatic environmental conditions
Max. 1000 m
Above 1000 m with 1 % derating per 100 m
Main circuit
134 W at 100% current and 90% speed
56 W at 25% current and 0% speed
56 W at 25% current and 50% speed
59 W at 50% current and 0% speed
70 W at 50% current and 50% speed
85 W at 50% current and 90% speed
87 W at 100% current and 0% speed
U/f control
Optional: Vector control with feedback (CLV)
Speed control with slip compensation
400 V AC, 3-phase
400 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Max. 30 % MN, Standard - Main circuit
