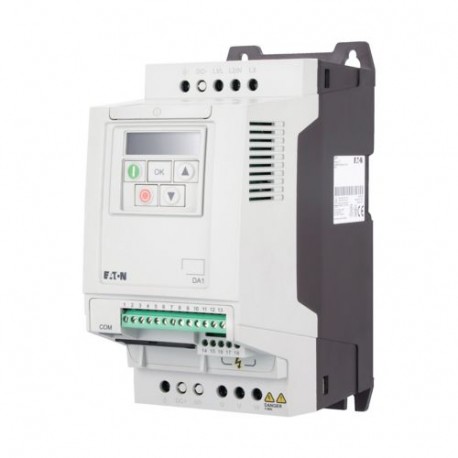

DA1-345D8FB-A20C 169051 Y7-169051 EATON ELECTRIC Variable frequency drive, 400 V AC, 3-phase, 5.8 A, 2.2 kW,..
DA1-345D8FB-A20C
169051
Y7-169051
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Variable frequency drive model DA1-345D8FB-A20C from Eaton Moeller provides advanced control features for three-phase AC motor installations. These drives are essential components in automated systems, allowing precise adjustments to motor velocity to match shifting operational requirements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 5.8 A
- Power consumption (EF000346): 101.2 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
UL
CSA-C22.2 No. 14
UL report applies to both US and Canada
RoHS, ISO 9001
UkrSEPRO
UL 508C
IEC/EN61800-3
RCM
UL File No.: E172143
IEC/EN 61800-3
EAC
CE
Certified by UL for use in Canada
IEC/EN61800-5
Specification for general requirements: IEC/EN 61800-2
UL Category Control No.: NMMS, NMMS7
CUL
General
C2 ≤ 5 m, Radio interference level, maximum motor cable length
200 m, screened, with motor choke, maximum permissible, Motor feeder
100 m, screened, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
C3 ≤ 25 m, Radio interference level, maximum motor cable length
Modbus-TCP, optional
Ethernet IP, optional
Modbus RTU, built in
DeviceNet, optional
EtherCAT, optional
SmartWire-DT, optional
PROFIBUS, optional
CANopen®, built in
PROFINET, optional
In conjunction with DX-NET-SWD1 SmartWire DT module
NEMA Other
IGBT inverter
Radio interference suppression filter
Control unit
7-digital display assembly
Internal DC link
PC connection
Breaking resistance
Brake chopper
Other bus systems
DeviceNet
PROFINET IO
CAN
PROFIBUS
MODBUS
TCP/IP
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Climatic environmental conditions
Max. 1000 m
Above 1000 m with 1 % derating per 100 m
Main circuit
38 W at 25% current and 50% speed
43 W at 50% current and 0% speed
47 W at 50% current and 50% speed
51 W at 100% current and 0% speed
57 W at 50% current and 90% speed
66 W at 100% current and 50% speed
81 W at 100% current and 90% speed
Optional: Vector control with feedback (CLV)
Sensorless vector control (SLV)
Speed control with slip compensation
480 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
