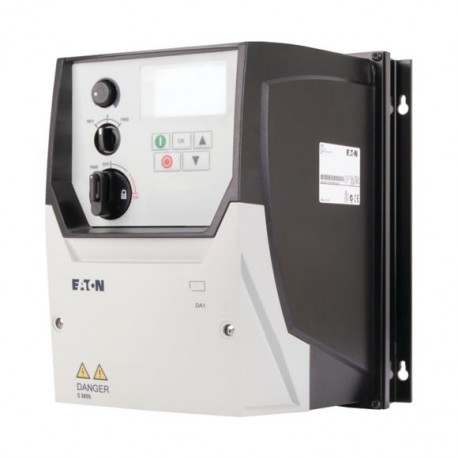

DA1-342D2FB-B6SC 169379 Y7-169379 EATON ELECTRIC Variable frequency drive, 400 V AC, 3-phase, 2.2 A, 0.75 kW..
DA1-342D2FB-B6SC
169379
Y7-169379
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for precise motor control, the Eaton Moeller DA1-342D2FB-B6SC variable frequency drive alters electrical frequency supplied to industrial motors. This regulation ensures optimized speed control, dynamic braking capabilities, and reduced mechanical wear in production line applications.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 2.2 A
- Power consumption (EF000346): 63.75 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
IEC/EN 61800-3
RCM
CUL
EAC
UkrSEPRO
UL 508C
CE
UL Category Control No.: NMMS, NMMS7
UL File No.: E172143
Safety: EN 61800-5-1: 2003
Specification for general requirements: IEC/EN 61800-2
Certified by UL for use in Canada
CSA-C22.2 No. 14
RoHS, ISO 9001
IEC/EN61800-3
IEC/EN61800-5
UL
General
C2 ≤ 5 m, Radio interference level, maximum motor cable length
100 m, screened, maximum permissible, Motor feeder
150 m, unscreened, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
DeviceNet, optional
EtherCAT, optional
Modbus RTU, built in
Ethernet IP, optional
Modbus-TCP, optional
PROFINET, optional
OP-Bus (RS485), built in
CANopen®, built in
IP66
Control unit
Additional PCB protection
Radio interference suppression filter
Local controls
PC connection
Brake chopper
Internal DC link
OLED display
Breaking resistance
PROFINET IO
CAN
EtherNet/IP
DeviceNet
PROFIBUS
Other bus systems
TCP/IP
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Above 1000 m with 1 % derating per 100 m
Max. 4000 m
Main circuit
20 W at 50% current and 0% speed
21 W at 25% current and 50% speed
21 W at 50% current and 50% speed
23 W at 50% current and 90% speed
26 W at 100% current and 0% speed
26 W at 100% current and 50% speed
33 W at 100% current and 90% speed
Optional: Vector control with feedback (CLV)
Speed control with slip compensation
Sensorless vector control (SLV)
400 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
