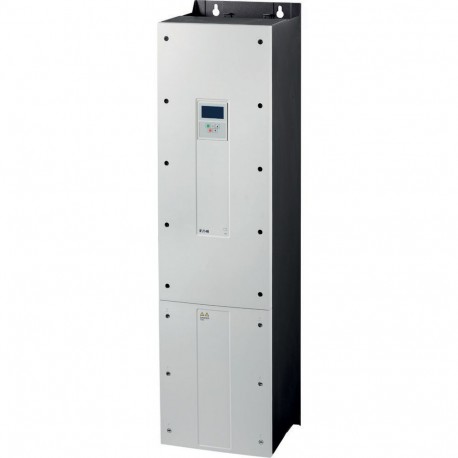

DA1-34240FB-B55C 169407 Y7-169407 EATON ELECTRIC Variable frequency drive, 400 V AC, 3-phase, 240 A, 132 kW,..
DA1-34240FB-B55C
169407
Y7-169407
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller DA1-34240FB-B55C is an Eaton Moeller frequency converter installed in industrial drive systems to provide continuous speed regulation, high starting torque, and dependable motor protection.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 240 A
- Power consumption (EF000346): 2376 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
Specification for general requirements: IEC/EN 61800-2
EAC
IEC/EN61800-3
RCM
UL 508C
UL File No.: E172143
IEC/EN 61800-3
UkrSEPRO
Certified by UL for use in Canada
CSA-C22.2 No. 14
IEC/EN61800-5
UL
CUL
Safety: EN 61800-5-1: 2003
UL Category Control No.: NMMS, NMMS7
CE
UL report applies to both US and Canada
DNV
General
C3 ≤ 25 m, Radio interference level, maximum motor cable length
150 m, unscreened, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
100 m, screened, maximum permissible, Motor feeder
DeviceNet, optional
Modbus-TCP, optional
PROFIBUS, optional
Modbus RTU, built in
PROFINET, optional
Ethernet IP, optional
EtherCAT, optional
SmartWire-DT, optional
CANopen®, built in
Yes
IP55
PC connection
Additional PCB protection
Radio interference suppression filter
Internal DC link
Brake chopper
DC link choke
IGBT inverter
OLED display
Breaking resistance
MODBUS
EtherNet/IP
PROFINET IO
DeviceNet
PROFIBUS
Other bus systems
TCP/IP
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Climatic environmental conditions
Max. 1000 m
Above 1000 m with 1 % derating per 100 m
Main circuit
1300 W at 50% current and 50% speed
1500 W at 50% current and 90% speed
1750 W at 100% current and 0% speed
2340 W at 100% current and 50% speed
2700 W at 100% current and 90% speed
590 W at 25% current and 0% speed
900 W at 25% current and 50% speed
Speed control with slip compensation
Sensorless vector control (SLV)
U/f control
480 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 30 % MN, Standard - Main circuit
