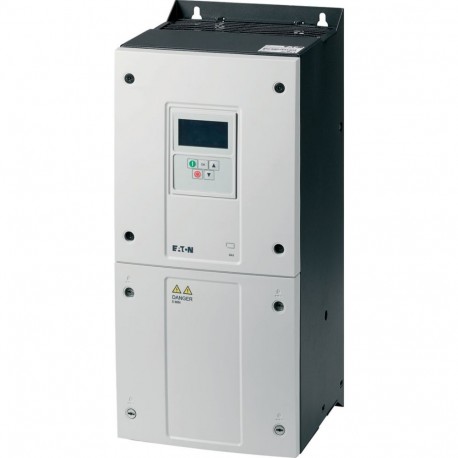

DA1-34061FB-B55C 169394 Y7-169394 EATON ELECTRIC Variable frequency drive, 400 V AC, 3-phase, 61 A, 30 kW, I..
DA1-34061FB-B55C
169394
Y7-169394
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part DA1-34061FB-B55C functions as a variable frequency drive to control electrical motor speeds and optimize torque performance in industrial machinery. Frequency inverters are essential for regulating mechanical output, reducing electrical startup surges, and automating production processes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 61 A
- Power consumption (EF000346): 840 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
CE
UL
Certified by UL for use in Canada
IEC/EN61800-5
CUL
RCM
Safety: EN 61800-5-1: 2003
UL 508C
UL Category Control No.: NMMS, NMMS7
DNV
IEC/EN 61800-3
IEC/EN61800-3
Specification for general requirements: IEC/EN 61800-2
UL report applies to both US and Canada
CSA-C22.2 No. 14
EAC
RoHS, ISO 9001
UkrSEPRO
General
200 m, screened, with motor choke, maximum permissible, Motor feeder
C2 ≤ 5 m, Radio interference level, maximum motor cable length
100 m, screened, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
150 m, unscreened, maximum permissible, Motor feeder
EtherCAT, optional
Modbus-TCP, optional
Ethernet IP, optional
CANopen®, built in
PROFINET, optional
DeviceNet, optional
SmartWire-DT, optional
Modbus RTU, built in
OP-Bus (RS485), built in
Yes
NEMA 12
Additional PCB protection
DC link choke
Control unit
OLED display
Radio interference suppression filter
Internal DC link
IGBT inverter
PC connection
Breaking resistance
DeviceNet
CAN
MODBUS
PROFIBUS
EtherNet/IP
PROFINET IO
TCP/IP
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 4000 m
Above 1000 m with 1 % derating per 100 m
Main circuit
260 W at 25% current and 50% speed
350 W at 50% current and 0% speed
350 W at 50% current and 50% speed
460 W at 50% current and 90% speed
550 W at 100% current and 0% speed
620 W at 100% current and 50% speed
830 W at 100% current and 90% speed
U/f control
Sensorless vector control (SLV)
Speed control with slip compensation
480 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
Max. 30 % MN, Standard - Main circuit
