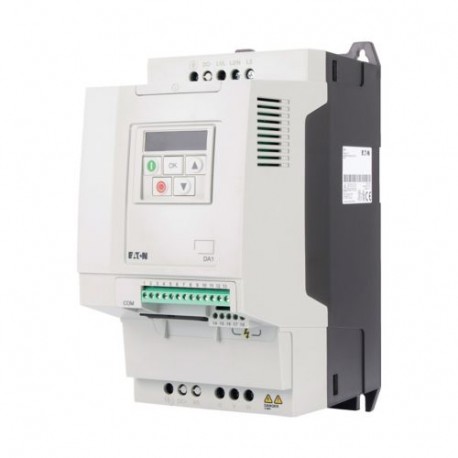

DA1-34024FB-A20C 169063 Y7-169063 EATON ELECTRIC Variable frequency drive, 400 V AC, 3-phase, 24 A, 11 kW, I..
DA1-34024FB-A20C
169063
Y7-169063
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller variable frequency drive DA1-34024FB-A20C is designed to regulate three-phase AC motor speeds across a wide range of industrial production systems. By managing electrical frequency and output voltage, this device delivers accurate control over mechanical positioning and torque requirements.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 24 A
- Power consumption (EF000346): 297 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
IEC/EN 61800-3
UL
IEC/EN61800-3
Safety: EN 61800-5-1: 2003
Specification for general requirements: IEC/EN 61800-2
UL File No.: E172143
UL report applies to both US and Canada
RoHS, ISO 9001
UL 508C
IEC/EN61800-5
UkrSEPRO
Certified by UL for use in Canada
CSA-C22.2 No. 14
RCM
EAC
CUL
UL Category Control No.: NMMS, NMMS7
Product specifications
Parameterization: Keypad
Parameterization: drivesConnect
Parameterization: drivesConnect mobile (App)
Additional PCB protection
Internal DC link
Control unit
Breaking resistance
Radio interference suppression filter
PC connection
Brake chopper
IGBT inverter
In conjunction with DX-NET-SWD1 SmartWire DT module
Sensorless vector control (SLV)
Speed control with slip compensation
Optional: Vector control with feedback (CLV)
Above 1000 m with 1 % derating per 100 m
Max. 4000 m
Modbus-TCP, optional
PROFINET, optional
SmartWire-DT, optional
OP-Bus (RS485), built in
Ethernet IP, optional
Modbus RTU, built in
CANopen®, built in
DeviceNet, optional
PROFIBUS, optional
NEMA Other
CAN
EtherNet/IP
Other bus systems
MODBUS
PROFIBUS
DeviceNet
TCP/IP
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
150 m, unscreened, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
C3 ≤ 25 m, Radio interference level, maximum motor cable length
100 m, screened, maximum permissible, Motor feeder
480 V AC, 3-phase
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
480 V AC, 3-phase
120 W at 25% current and 50% speed
130 W at 50% current and 0% speed
160 W at 50% current and 50% speed
212 W at 50% current and 90% speed
232 W at 100% current and 0% speed
290 W at 100% current and 50% speed
355 W at 100% current and 90% speed
