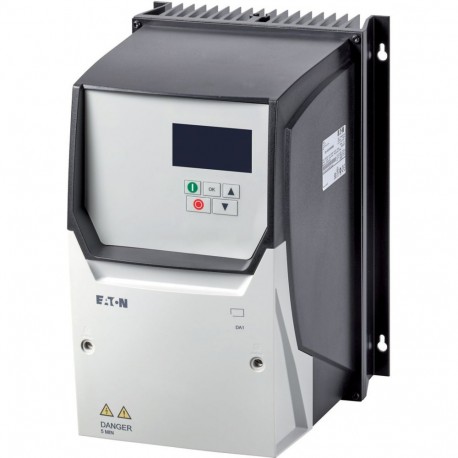

DA1-34018FB-B66C 169388 Y7-169388 EATON ELECTRIC Variable frequency drive, 400 V AC, 3-phase, 18 A, 7.5 kW, ..
DA1-34018FB-B66C
169388
Y7-169388
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller variable frequency drive, part number DA1-34018FB-B66C, is engineered to regulate the operational speed and torque of three-phase alternating current motors. These power conversion units are commonly installed within manufacturing equipment, conveyor systems, and fluid handling setups to optimize process efficiency and reduce mechanical wear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 18 A
- Power consumption (EF000346): 300 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
RoHS, ISO 9001
UL report applies to both US and Canada
IEC/EN 61800-3
UL
EAC
Certified by UL for use in Canada
IEC/EN61800-3
CUL
UkrSEPRO
CSA-C22.2 No. 14
IEC/EN61800-5
Specification for general requirements: IEC/EN 61800-2
Safety: EN 61800-5-1: 2003
UL Category Control No.: NMMS, NMMS7
CE
UL 508C
UL File No.: E172143
General
100 m, screened, maximum permissible, Motor feeder
150 m, unscreened, maximum permissible, Motor feeder
C2 ≤ 5 m, Radio interference level, maximum motor cable length
C3 ≤ 25 m, Radio interference level, maximum motor cable length
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
OP-Bus (RS485), built in
CANopen®, built in
PROFIBUS, optional
PROFINET, optional
DeviceNet, optional
Modbus RTU, built in
Modbus-TCP, optional
Ethernet IP, optional
NEMA 4X
IGBT inverter
Brake chopper
OLED display
Radio interference suppression filter
Control unit
PC connection
Additional PCB protection
Internal DC link
CAN
EtherNet/IP
DeviceNet
PROFIBUS
PROFINET IO
Other bus systems
TCP/IP
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Above 1000 m with 1 % derating per 100 m
Max. 4000 m
Main circuit
138 W at 50% current and 0% speed
138 W at 50% current and 50% speed
165 W at 100% current and 0% speed
172 W at 50% current and 90% speed
205 W at 100% current and 50% speed
271 W at 100% current and 90% speed
88 W at 25% current and 0% speed
Sensorless vector control (SLV)
Optional: Vector control with feedback (CLV)
Speed control with slip compensation
480 V AC, 3-phase
480 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
