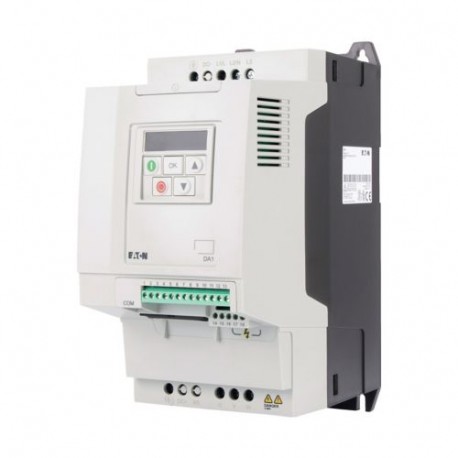

DA1-34018FB-A20C 169060 Y7-169060 EATON ELECTRIC Variable frequency drive, 400 V AC, 3-phase, 18 A, 7.5 kW, ..
DA1-34018FB-A20C
169060
Y7-169060
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller component DA1-34018FB-A20C is a variable frequency drive. AC drives control the rotational speed and torque of three-phase electric motors by varying the motor input frequency and voltage, optimizing energy consumption in pumps, conveyors, and fans. Final pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 18 A
- Power consumption (EF000346): 300 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
IEC/EN 61800-3
UL
UL 508C
EAC
IEC/EN61800-3
CUL
UL File No.: E172143
IEC/EN61800-5
Specification for general requirements: IEC/EN 61800-2
RoHS, ISO 9001
Safety: EN 61800-5-1: 2003
UL Category Control No.: NMMS, NMMS7
CE
UkrSEPRO
CSA-C22.2 No. 14
RCM
UL report applies to both US and Canada
General
200 m, screened, with motor choke, maximum permissible, Motor feeder
150 m, unscreened, maximum permissible, Motor feeder
100 m, screened, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
C3 ≤ 25 m, Radio interference level, maximum motor cable length
SmartWire-DT, optional
CANopen®, built in
Ethernet IP, optional
PROFINET, optional
Modbus RTU, built in
OP-Bus (RS485), built in
Modbus-TCP, optional
DeviceNet, optional
PROFIBUS, optional
Yes
NEMA Other
Additional PCB protection
Radio interference suppression filter
IGBT inverter
Control unit
Internal DC link
Brake chopper
PC connection
Breaking resistance
EtherNet/IP
DeviceNet
PROFIBUS
PROFINET IO
CAN
MODBUS
TCP/IP
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Climatic environmental conditions
Max. 4000 m
Max. 1000 m
Main circuit
138 W at 50% current and 0% speed
138 W at 50% current and 50% speed
165 W at 100% current and 0% speed
172 W at 50% current and 90% speed
205 W at 100% current and 50% speed
271 W at 100% current and 90% speed
88 W at 25% current and 0% speed
U/f control
Optional: Vector control with feedback (CLV)
Sensorless vector control (SLV)
480 V AC, 3-phase
400 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Max. 100 % of rated operational current Ie with external braking resistor - Main circuit
