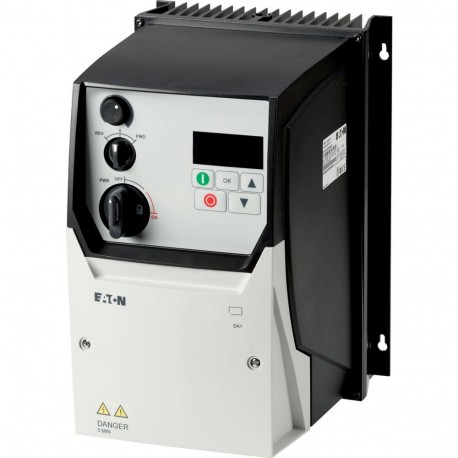

DA1-34014FB-B6SC 169387 Y7-169387 EATON ELECTRIC Variable frequency drive, 400 V AC, 3-phase, 14 A, 5.5 kW, ..
DA1-34014FB-B6SC
169387
Y7-169387
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Variable frequency drive part number DA1-34014FB-B6SC by Eaton Moeller is a robust electronic inverter utilized for regulating three-phase induction motor speed and performance. These devices enable smooth acceleration, deceleration, and process optimization across various industrial automation systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 380 V
- Mains frequency (EF006783): 50/60 Hz
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Max. output frequency (EF007350): 500 Hz
- Max. output voltage (EF009560): 500 V
- Nominal output current I2N (EF009561): 14 A
- Power consumption (EF000346): 209 W
- Relative symmetric net frequency tolerance (EF007454): 10 %
- Relative symmetric net voltage tolerance (EF007453): 10 %
- Number of analogue outputs (EF001995): 2
- Number of analogue inputs (EF001994): 2
- Number of digital outputs (EF001993): 2
- Number of digital inputs (EF001992): 5
- With control element (EF001538): Yes
- Application in industrial area permitted (EF007294): Yes
More info
▲General specifications
IEC/EN61800-3
UL
UL File No.: E172143
IEC/EN 61800-3
Certified by UL for use in Canada
IEC/EN61800-5
CSA-C22.2 No. 14
Specification for general requirements: IEC/EN 61800-2
RCM
UkrSEPRO
UL Category Control No.: NMMS, NMMS7
UL 508C
RoHS, ISO 9001
UL report applies to both US and Canada
CE
Safety: EN 61800-5-1: 2003
EAC
General
C2 ≤ 5 m, Radio interference level, maximum motor cable length
100 m, screened, maximum permissible, Motor feeder
C3 ≤ 25 m, Radio interference level, maximum motor cable length
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
200 m, screened, with motor choke, maximum permissible, Motor feeder
CANopen®, built in
OP-Bus (RS485), built in
Modbus-TCP, optional
PROFINET, optional
Modbus RTU, built in
Ethernet IP, optional
DeviceNet, optional
PROFIBUS, optional
NEMA 4X
PC connection
IGBT inverter
Additional PCB protection
Control unit
Radio interference suppression filter
OLED display
Internal DC link
Breaking resistance
Brake chopper
CAN
MODBUS
PROFINET IO
EtherNet/IP
PROFIBUS
DeviceNet
TCP/IP
Climatic environmental conditions
Max. 4000 m
Max. 1000 m
Main circuit
114 W at 100% current and 0% speed
126 W at 50% current and 90% speed
153 W at 100% current and 50% speed
192 W at 100% current and 90% speed
74 W at 25% current and 0% speed
89 W at 25% current and 50% speed
90 W at 50% current and 0% speed
Optional: Vector control with feedback (CLV)
Sensorless vector control (SLV)
U/f control
480 V AC, 3-phase
400 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
