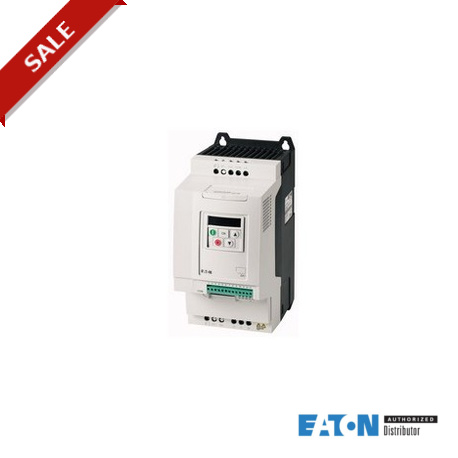

EATON - MOELLER DA1-34014FB-A20N DA1-34014FB-A20N 169203 EATON ELECTRIC Industrial Automation Bussines and Industrial Control Devices Low Vol.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DA1-34014FB-A20N 169203 EATON ELECTRIC Industrial Automation Bussines and Industrial Control Devices Low Vol..

DA1-34014FB-A20N

169203

EATON - MOELLER

1 Pcs.

Industrial Automation Bussines and Industrial Control Devices Low Voltage VFD Variable Frequency Drive, 3~/3~ 400 V, 14 A, 5.5 kW, Vector control, EMC-Filter, Brake-Chopper

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller DA1-34014FB-A20N functions as a robust frequency converter designed to manage AC motor speeds dynamically in commercial and industrial automation systems. It translates fixed utility power into variable frequency outputs, supporting efficient motion control and network communication protocols.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mains voltage (EF006780): 380 V
  • Mains frequency (EF006783): 50/60 Hz
  • Number of phases input (EF007117): 3
  • Number of phases output (EF006998): 3
  • Max. output frequency (EF007350): 500 Hz
  • Max. output voltage (EF009560): 400 V
  • Nominal output current I2N (EF009561): 14 A
  • Relative symmetric net frequency tolerance (EF007454): 10 %
  • With control element (EF001538): Yes
  • Application in industrial area permitted (EF007294): Yes
  • Supporting protocol for TCP/IP (EF003050): No
  • Supporting protocol for PROFIBUS (EF003052): Yes
  • Supporting protocol for CAN (EF003053): Yes
  • Supporting protocol for INTERBUS (EF003054): No
  • Supporting protocol for ASI (EF003051): No
  • Supporting protocol for KNX (EF003055): No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
