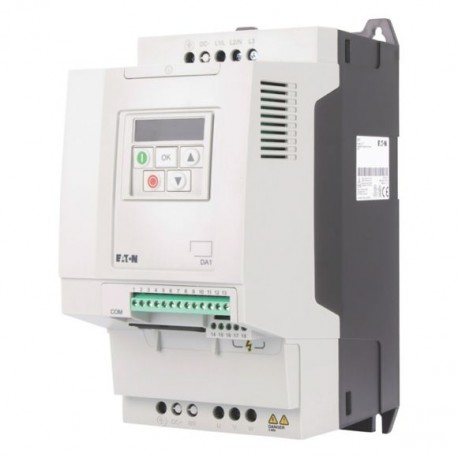

DA1-34014FB-A20C 169057 Y7-169057 EATON ELECTRIC Variable frequency drive, 400 V AC, 3-phase, 14 A, 5.5 kW, ..
DA1-34014FB-A20C
169057
Y7-169057
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number DA1-34014FB-A20C is a variable frequency drive configured for efficient electrical motor management in automated industrial environments. Standard frequency converters are utilized across commercial and manufacturing sectors to modulate motor speeds and decrease overall mechanical wear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: DA1-34014FB-A20C
- Catalogue code: 169057
More info
▲General specifications
UL 508C
UL
IEC/EN61800-3
Safety: EN 61800-5-1: 2003
IEC/EN 61800-3
RCM
IEC/EN61800-5
UL Category Control No.: NMMS, NMMS7
Certified by UL for use in Canada
CSA-C22.2 No. 14
UkrSEPRO
RoHS, ISO 9001
UL File No.: E172143
CE
CUL
EAC
UL report applies to both US and Canada
General
C2 ≤ 5 m, Radio interference level, maximum motor cable length
100 m, screened, maximum permissible, Motor feeder
C3 ≤ 25 m, Radio interference level, maximum motor cable length
150 m, unscreened, maximum permissible, Motor feeder
300 m, unscreened, with motor choke, maximum permissible, Motor feeder
PROFINET, optional
OP-Bus (RS485), built in
PROFIBUS, optional
Modbus-TCP, optional
SmartWire-DT, optional
Modbus RTU, built in
CANopen®, built in
EtherCAT, optional
DeviceNet, optional
Yes
NEMA Other
Radio interference suppression filter
Additional PCB protection
PC connection
Breaking resistance
7-digital display assembly
Internal DC link
IGBT inverter
Brake chopper
Other bus systems
PROFIBUS
CAN
EtherNet/IP
MODBUS
DeviceNet
TCP/IP
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Climatic environmental conditions
Max. 1000 m
Max. 4000 m
Main circuit
114 W at 100% current and 0% speed
126 W at 50% current and 90% speed
153 W at 100% current and 50% speed
192 W at 100% current and 90% speed
74 W at 25% current and 0% speed
89 W at 25% current and 50% speed
90 W at 50% current and 0% speed
Speed control with slip compensation
U/f control
Optional: Vector control with feedback (CLV)
480 V AC, 3-phase
400 V AC, 3-phase
Motor rating
Apparent power
Braking function
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
